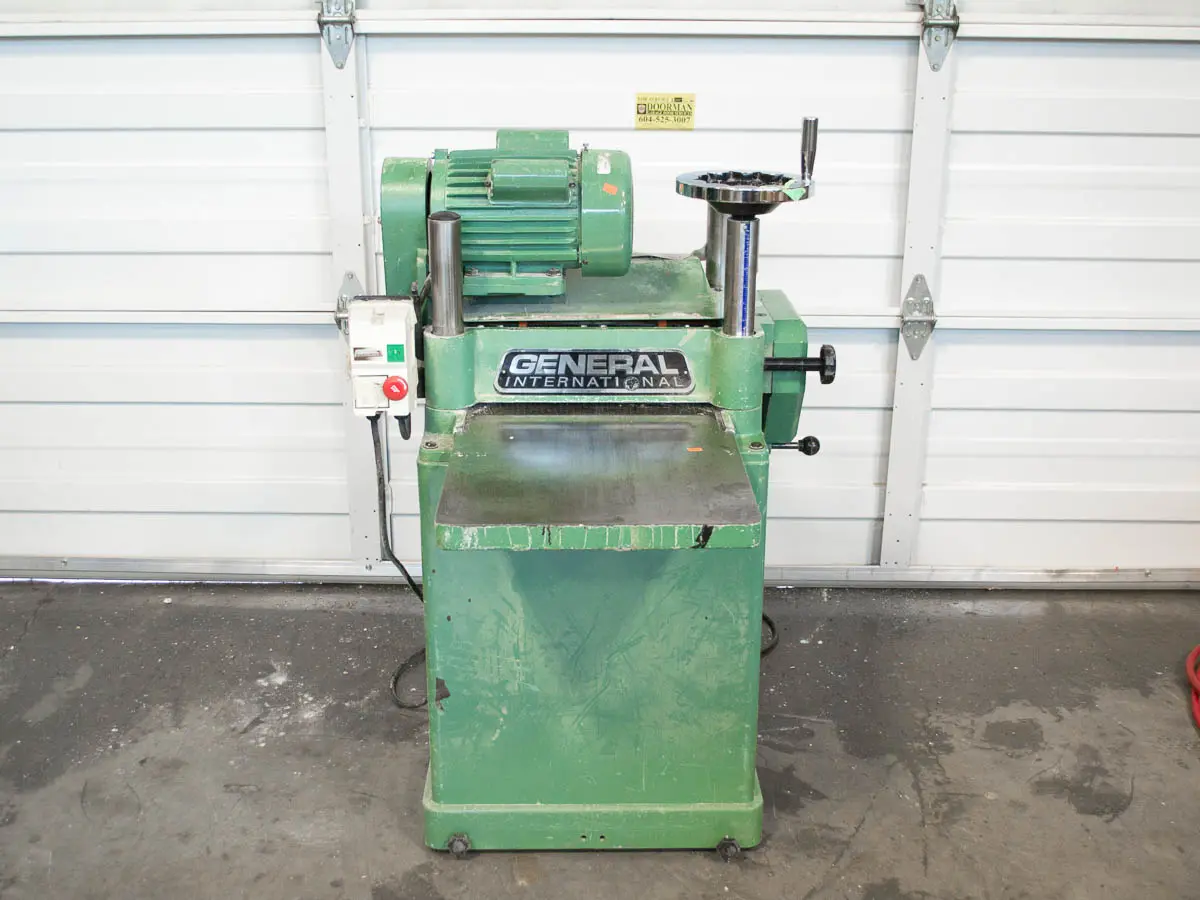

General International 30-115M1 Planer

General International 30-115M1 Planer

SKU: 759-1

CAD $1,500.00

In Stock

In stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Specifications

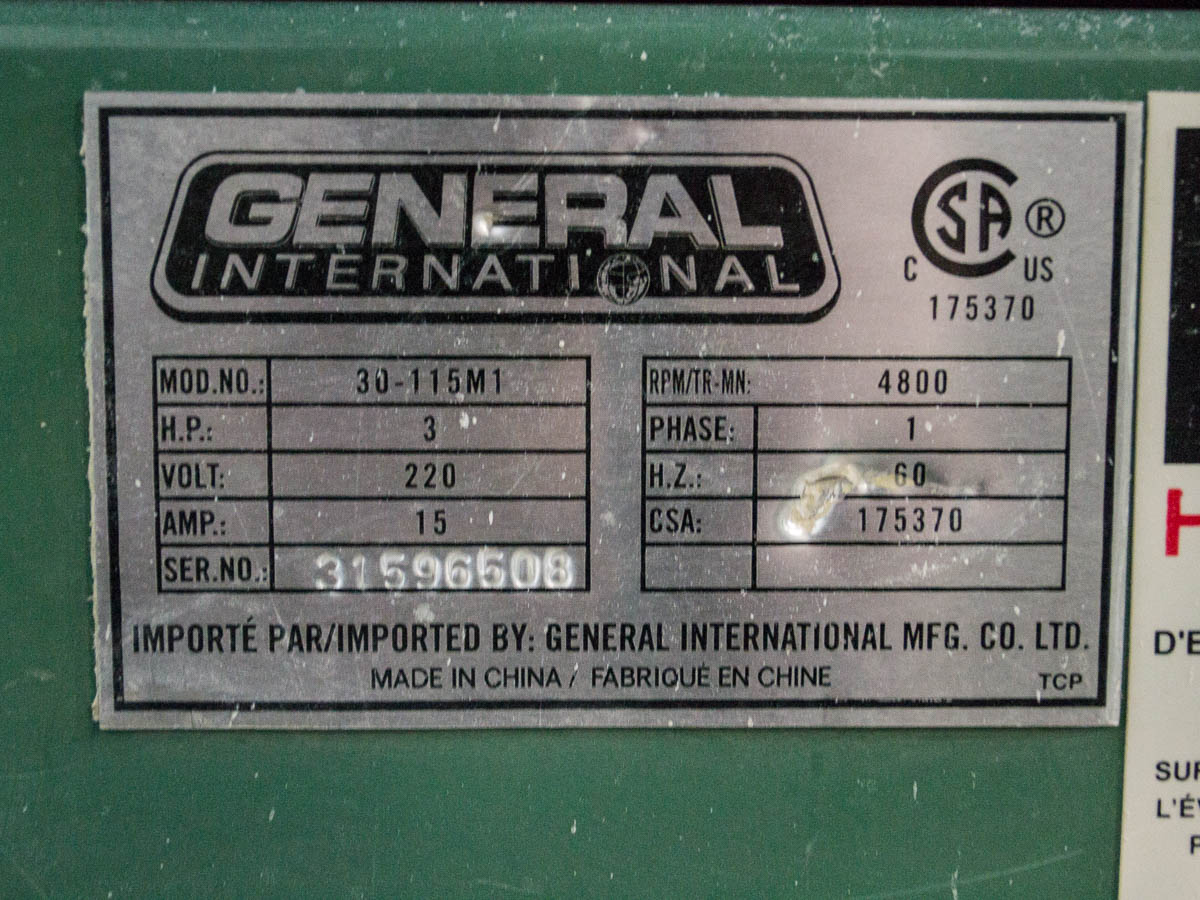

  • 3 HP
  • 220 V
  • 18 A
  • Single Phase
  • Maximum planing width: 15’’ (380 mm)
  • Maximum thickness of stock: 6” (152 mm)
  • Minimum thickness of stock: 1/8’’ (3 mm)
  • Minimum length of stock: 6 1/2’’ (165 mm)
  • Maximum depth of cut 1/8’’: (3 mm)
  • Cutter head speed: 5000 rpm
  • Feed speeds (2): 16 & 20 fpm (4.87 & 6.1 mpm)
  • Cuts per inch (30-115 only)
  • 78.13 at 16 fpm & 62.5 at 20 fpm
  • Knives / inserts 3 – 30-115 / 42 – 30115HC
  • Dust outlet: 4″ (102 mm)
  • Base dimensions (l x w): 21 1/2” x 21” (546 x 533 mm)
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
