SKU: 539-39

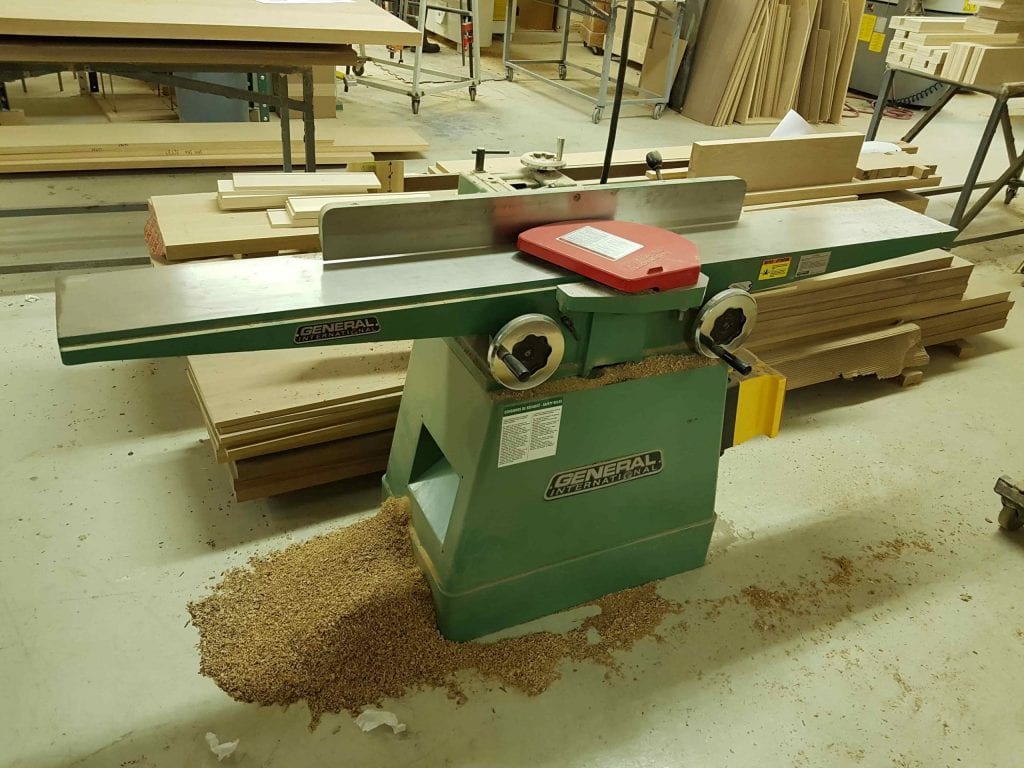

General International 8″ deluxe jointer

Out of Stock But wait, we have similar products

Table size	9 1/4″ x 74 7/8″ (235 x 1900 mm)
Table height	31 7/8″ (810 mm)
In-feed table and out-feed dimensions (l x w)	36 1/2″ x 9 1/4″ (936 x 235 mm)
Maximum cutting width	8″ (203 mm)
Maximum cutting depth	1/2″ (13 mm)
Rabbeting capacity	1/2″ x 8″ (13 x 203 mm)
Fence size	4″ x 38″ (102 x 965 mm)
Cutter head speed	5500 rpm
Number of knives / Insertions	3 – 80-200L
Base dimensions (l x w)	29″ x 17’’ (736.6 x 431.8 mm)
Motor M1	2 HP, 220 V, 1 Ph, 12 A

Magnetic switch for added safety.
Large surface, ground cast-iron tables for stability and added support when feeding longer stock.
Heavy-duty, three-knife cutter head for clean, fast, superior finish cuts.
Large, heavy-duty, center-mounted cast-iron fence with 45°, 90° and 135° positive stops.
Independent in-feed and out-feed table adjustment handwheels.
Built-in rabbeting ledge.
Convenient front to back fence
adjustment handwheel.
Motor mounted on vibro-eliminators for smooth, quiet operation.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
