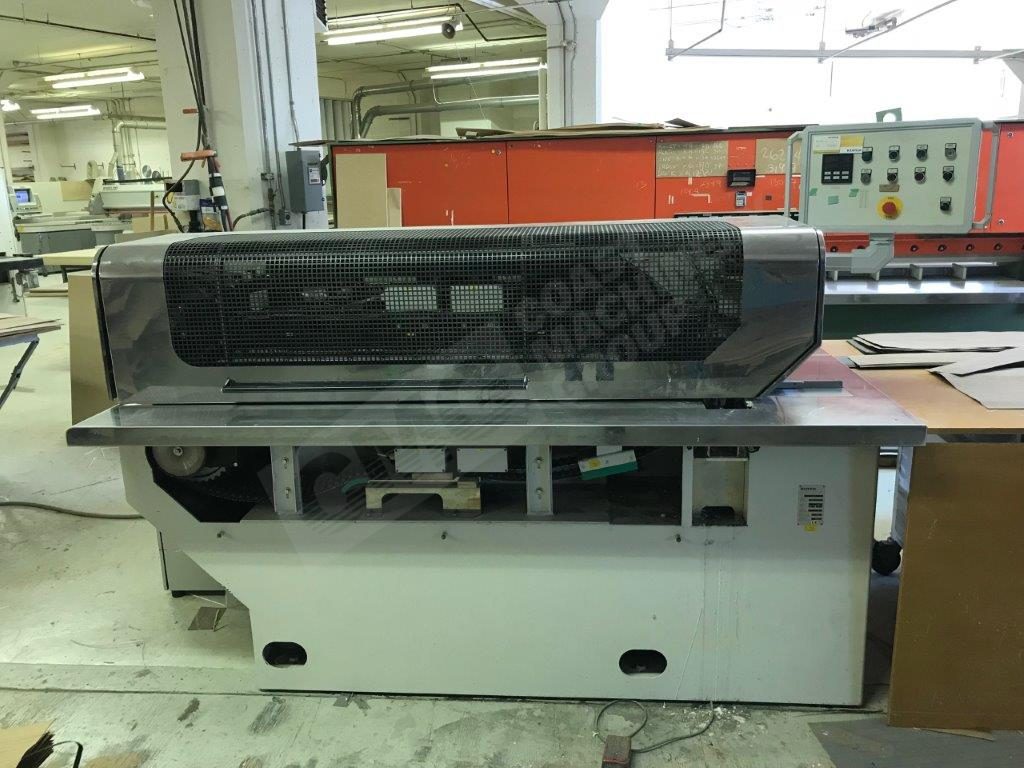

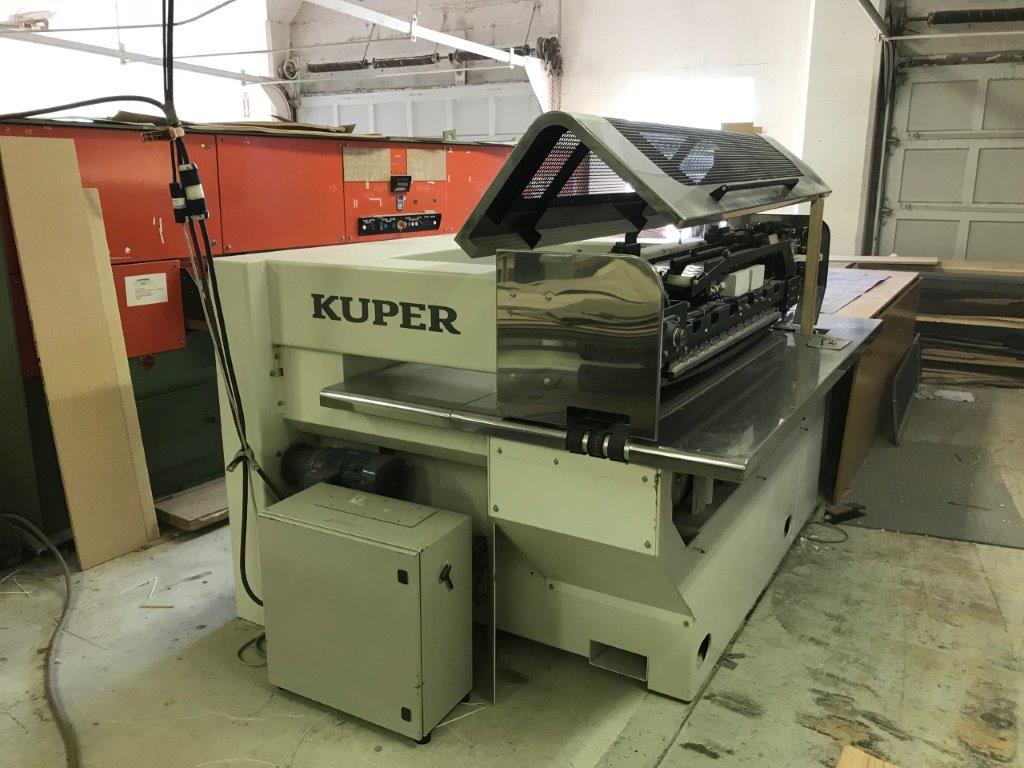

Kuper FLI Veneer Splicer

Features and Specifications:

• Throat depth: 1000 mm
• Veneer thickness: approx. 0.3 to 2.5* mm
• Veneer length: from approx. 350 mm
• Veneer strip width: from approx. 45 mm
• Feed speed: approx. 20 – 50 m/min
• Length of heating zone: 1200 mm
• Heating temperature: approx. 220 C
• Operating voltage: 575 V  50 cycles  3 Ph.
• 10 A
• Total connected load: approx. 9.3 KVA
• Average power consumption: approx. 5 KW
• Air consumption: approx. 5 NL / 6 bar
• Floor space: 2370 x 1960 x 1470 mm
•  This machine has a maintenance-free transport chain made of plastic at its command;
• lubrication is omitted.
• Staining on the veneer due to condensation and abrasion of the previously deployed stainless steel chain.
• A narrow heating area treats sensitive veneer with care and reduces the veneer shrinkage.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
