SKU: 639-38

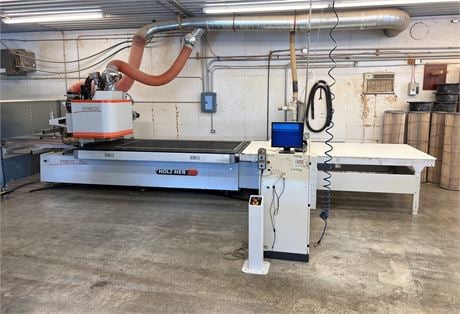

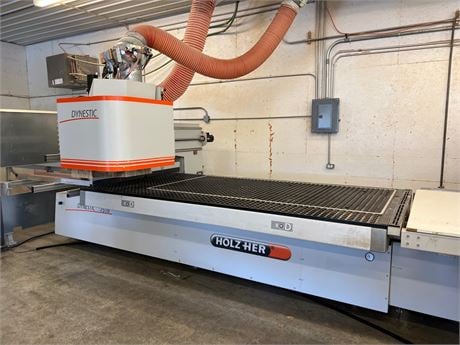

Holz-her Dynestic 7516 CNC Router

Out of Stock But wait, we have similar products

Specifications

  • 230 V
  • 3 Phase
  • Mfg Date: 2010
  • 5′ x 10′ Phenolic MATRIX Table for “Nested Base” Manufacturing.
  • “X” Axis 145.8″
  • “Y” axis 61.45″
  • “Z” axis stroke 12.9″
  • “X” & “Y” Axis 230 FPM (70 MPM), “Z” axis is 65 FPM (20 MPM).
  •  Pneumatically controlled referrence stop pins with (3) in “Y” axis & (1) in “X” axis.
  • 2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with (6) spindles in the “X” axis & (4) spindles in the “Y” axis.
  • 15 HP (11 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 – 24,000 RPM.

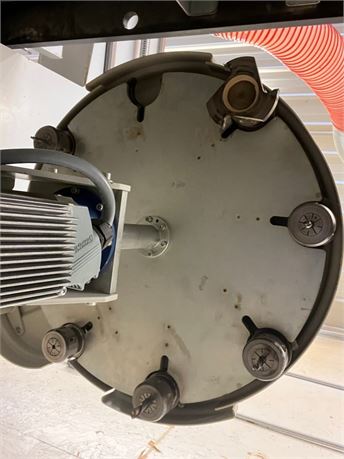

  • 8-position ATC tool plate for “on the fly” ATC.
  • PC Front-End with Holz-Her “CAMPUS” Basic Bundle + Windows “XP” operating system; 17″ Color monitor; standard keyboard, mouse & CD ROM for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement.
  • (1) (1) Rake system; (1) Outfeed table with vacuum sweeping system, 64″ x 124″, sliding design for easy unloading.

37’L x 8-1/2’W x 7’H

6,000 lbs
