SKU: 477-7

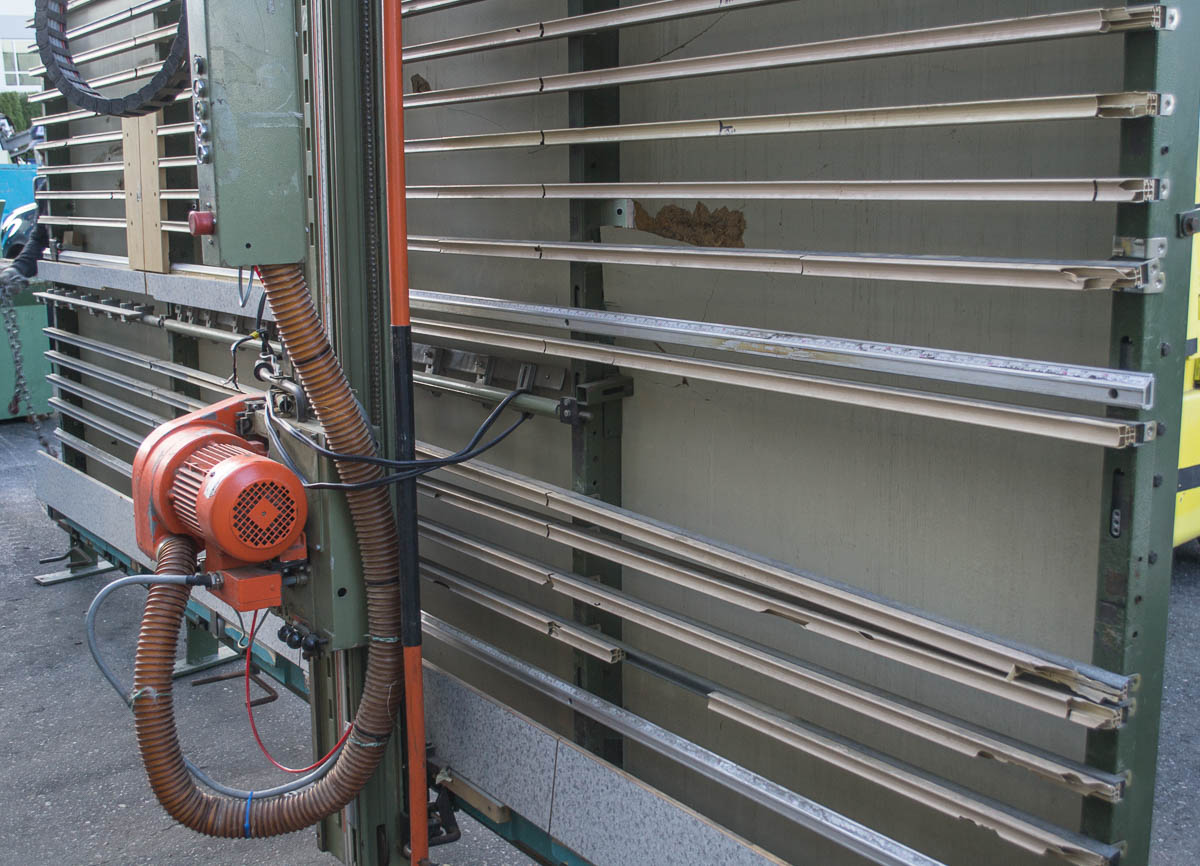

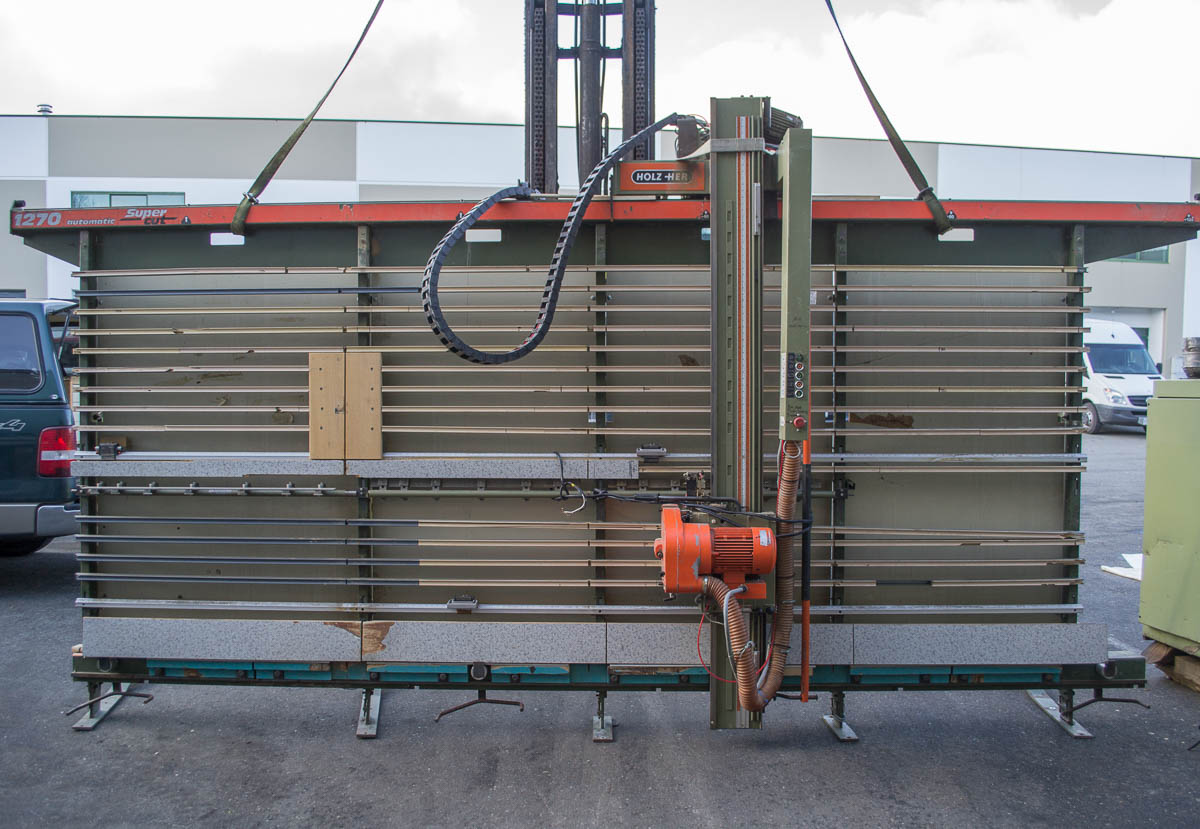

Holzher 1270 Automatic Vertical Panel Saw

Out of Stock But wait, we have similar products

Vertical Panel saw with score feature. Capable of rip and crosscut functions.

Manufacturer Description:

  • Fully automatic, 2 speed (11/22 m/min) vertical and horizontal cutting provides fast clean cuts in most materials
  • Patented Supercut scoring system for chip-free cutting readyfor finishing
  • Powerful 4 HP motor cuts through panels with ease and accuracy
  • Sturdy all welded steel frame – gives smooth cutting accuracy
  • Integrated dust extraction system – keeps work areas clean
  • Back grid shifts automatically for horizontal cutting
  • Hinged support makes cutting small pieces easy and safe

Specifications:

Working Dimensions

  • Cutting dimensions (inches)
  • Length x height 169 x 75
  • Edging height 73
  • Cutting depth 2 (max)

Saw Unit

  • Motor power 4 HP 230V. 60Hz
  • Saw blade dia. 8.6’’ (220 mm)
  • Saw blade speed (rpm) at 60Hz 6540
  • 2 Feed speeds 11/22 m/min

Extraction

  • Air requirement (cfm) 825
  • Air speed (fpm) 3936
  • Unit connection (mm) 65 (2 1/2’’)
  • Static under pressure (Pa) 900
Dimensions 104 × 56 × 202 in
Brand
Voltage
Phase
Amps
Serial
