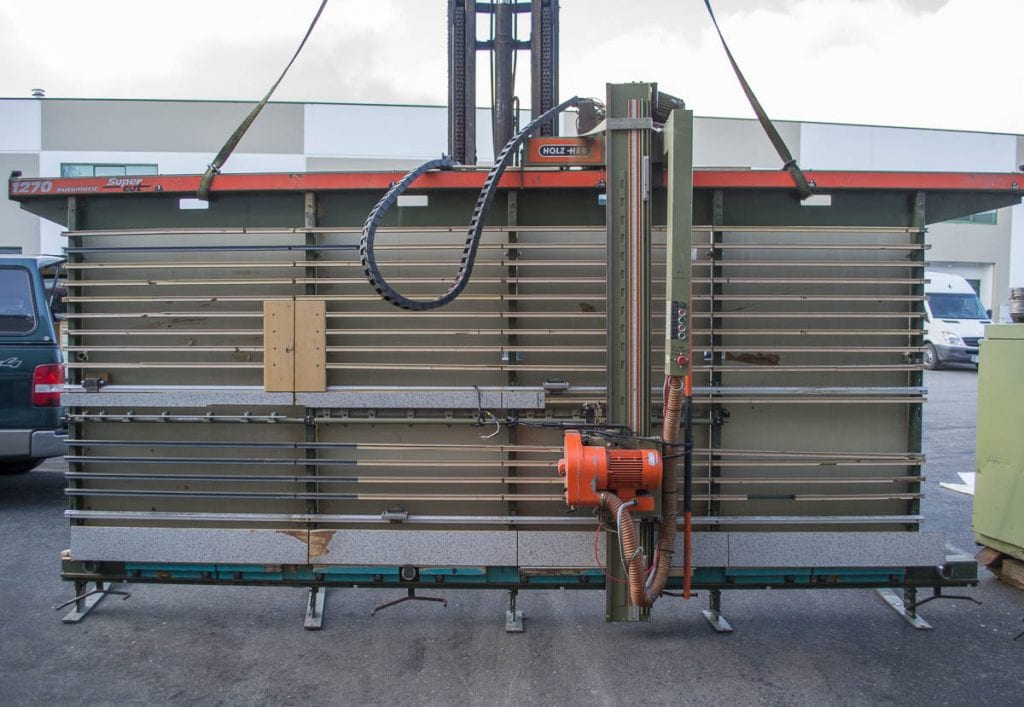

Holzher 1270 Automatic Vertical Panel Saw

Vertical Panel saw with score feature. Capable of rip and crosscut functions.

Manufacturer Description:

• Fully automatic, 2 speed (11/22 m/min) vertical and horizontal cutting provides fast clean cuts in most materials
• Patented Supercut scoring system for chip-free cutting readyfor finishing
• Powerful 4 HP motor cuts through panels with ease and accuracy
• Sturdy all welded steel frame – gives smooth cutting accuracy
• Integrated dust extraction system – keeps work areas clean
• Back grid shifts automatically for horizontal cutting
• Hinged support makes cutting small pieces easy and safe

Specifications:

Working Dimensions

• Cutting dimensions (inches)
• Length x height 169 x 75
• Edging height 73
• Cutting depth 2 (max)

Saw Unit

• Motor power 4 HP 230V. 60Hz
• Saw blade dia. 8.6’’ (220 mm)
• Saw blade speed (rpm) at 60Hz 6540
• 2 Feed speeds 11/22 m/min

Extraction

• Air requirement (cfm) 825
• Air speed (fpm) 3936
• Unit connection (mm) 65 (2 1/2’’)
• Static under pressure (Pa) 900
