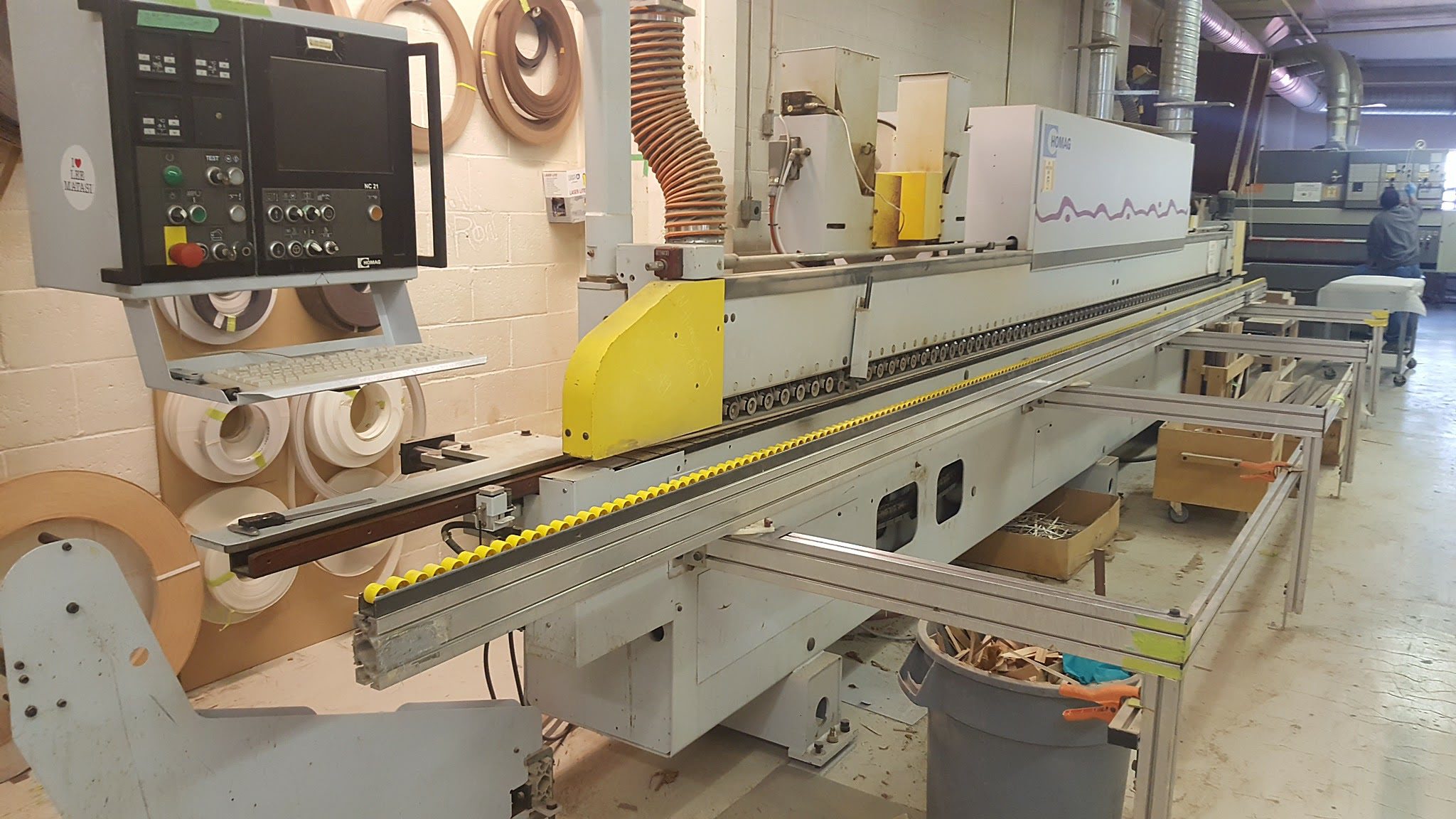

Features and Specifications:
- Capacity Specifications: 0.4 – 20 mm Edge thickness cap.,min. panel width 55 mm (2-3/16″) for panel thickness12 – 22 mm (1/2″ – 7/8″) and under;
- 100 mm (3.9″) for panel thickness over 22 – 60 mm (7/8″ – 2- , -5/16″); for up to 3 mm Coil stock, HPL, and strip stock up to 20 mm (3/4″).
- Top pressure beam with: Double-wide compound Vbelts;80 mm wide feed track chain plates, vulcanized rubber insert pads, and Auto-Lube; variable feed speed from 18 – 24 MPM (59 – 79 FPM); 950 mm height/working level infeed
- Pre-Milling Station with: (2) 3 kW – 150 Hz, 9,000 RPM Motors, panel blowoff device; 2-position infeed fence (on/off), SIKO digital manual fence control. Panel Pre-Heater with: Quartz lamp for heating substrate edge before glue application.

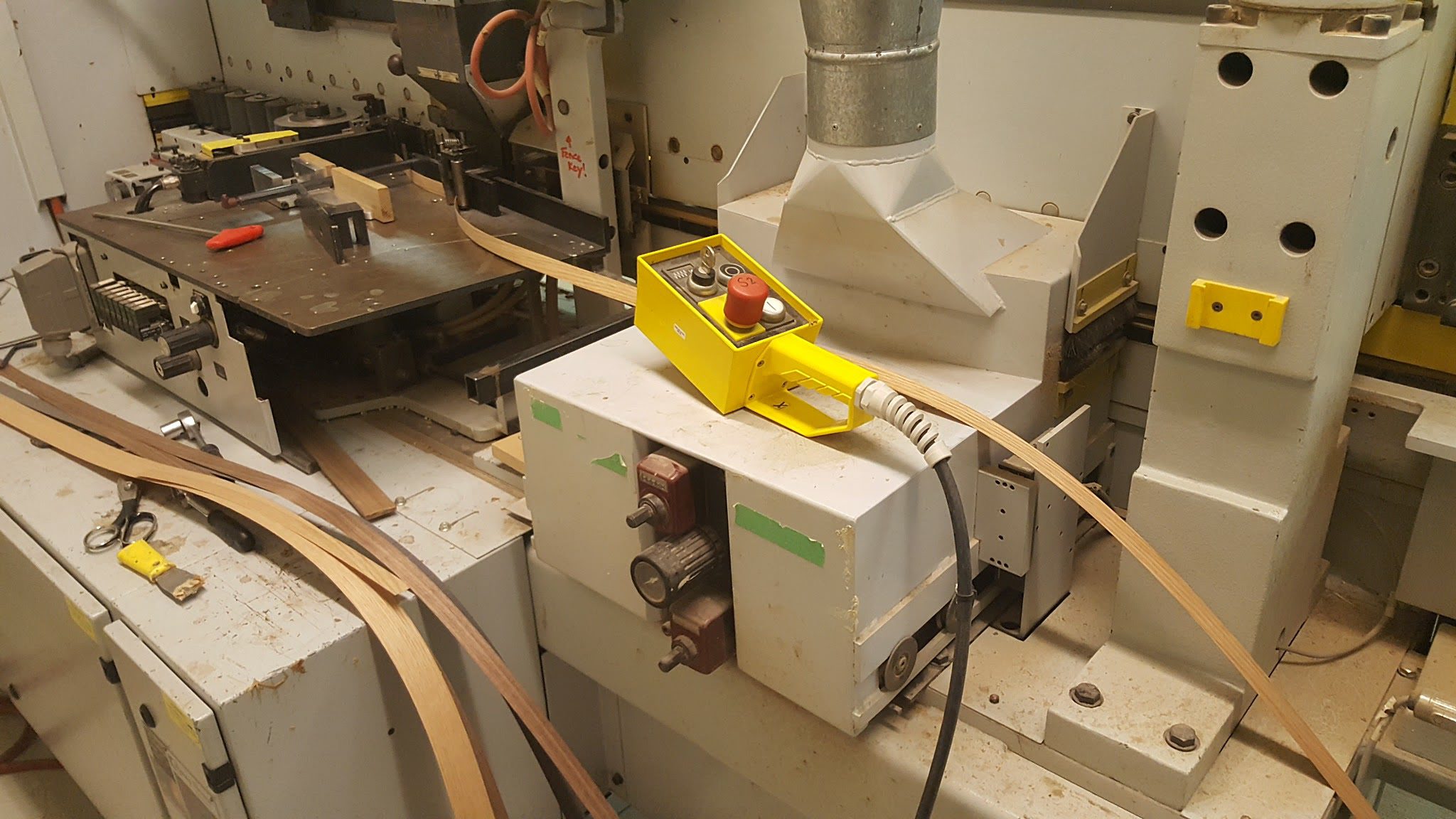

- Edge Feeding device equipped with: Automatic coil magazine for quick coil changeover; strip feeder for up to 20 mm (3/4″) solid wood banding.

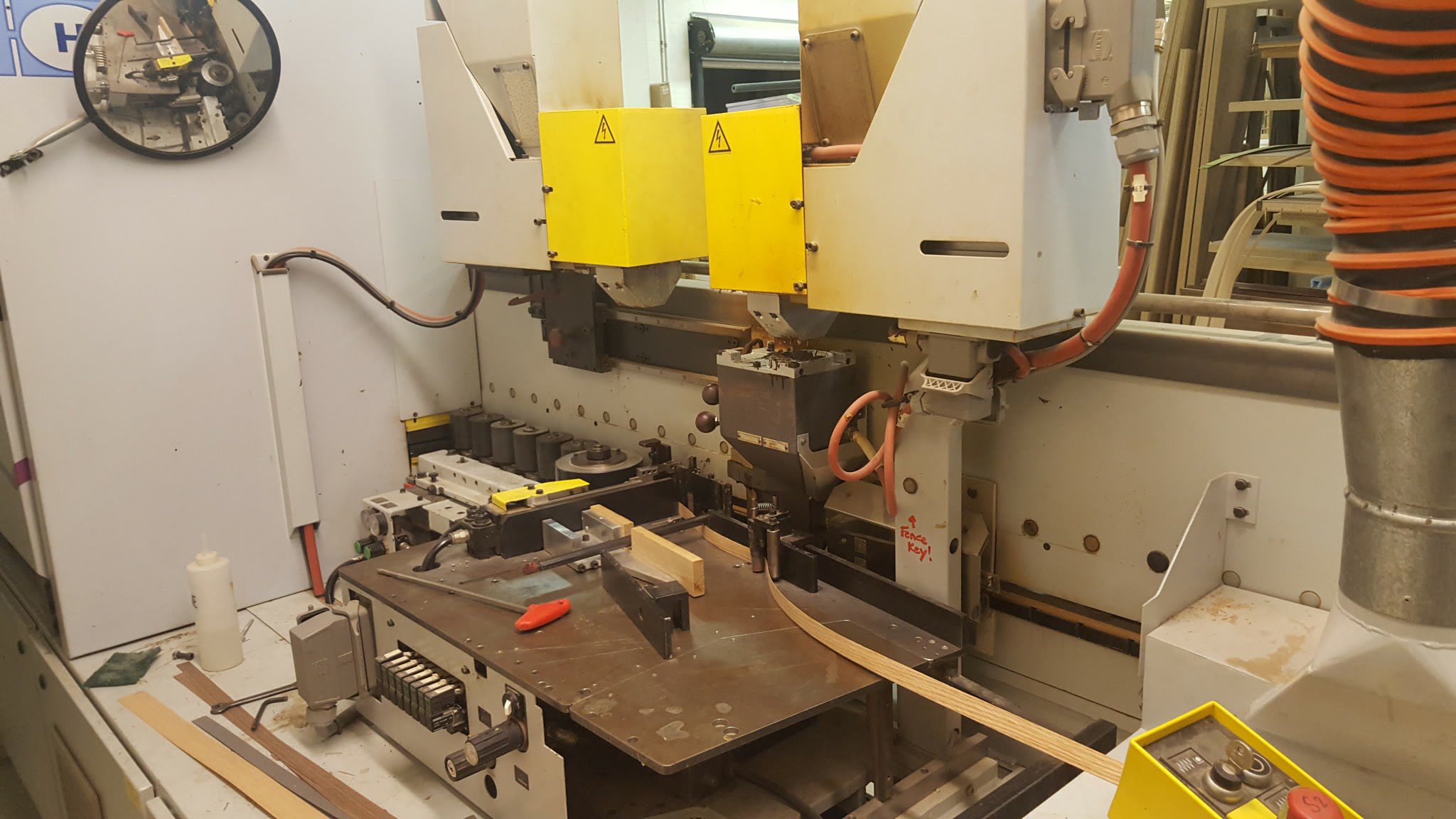

- “Quick Melt” Glue System with: Reversible glue roller applicator; pressure roll section with (1) large dia. driven and (6) idle rollers; manual adjustment of pressure zone through SIKO digital counters for different edge thicknesses.
- Double motor front & rear end trim, straight & chamfer trimming (0.8 HP – 12,000 RPM ea. motor).
- Top & Bottom flush trim (2 HP – 12,000 RPM ea. motor).
- Profile Trimming unit “FK13” to process overhanging edges and trimming around the leading & trailing edge (0.75 HP each motor), 8-position tool changer .
- Edge Scrape Super-Finishing unit for thick PVC/ABS with chip collection box.
- Top & Bottom Flat Glue Scraper to remove potential glue squeeze-out.
- Top & Bottom oscillating buffing unit (two 0.33 HP – 1,650 RPM motors).
- “HOMATIC NC 16” controller features with Keypad & LCD display, stores working programs and controls functions of workstations, allows fault diagnostic and more etc.
- Complete with: PLC controlled, motorized beam height adjustment; servo adjustments on Top & Bottom flush trim, and servo controlled Scraper Stations.
- Electronic DC brakes on all trim motors sound cabins for all trim workstations and adjustable outboard panel support.
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Machine Literature and Schematics Available.
