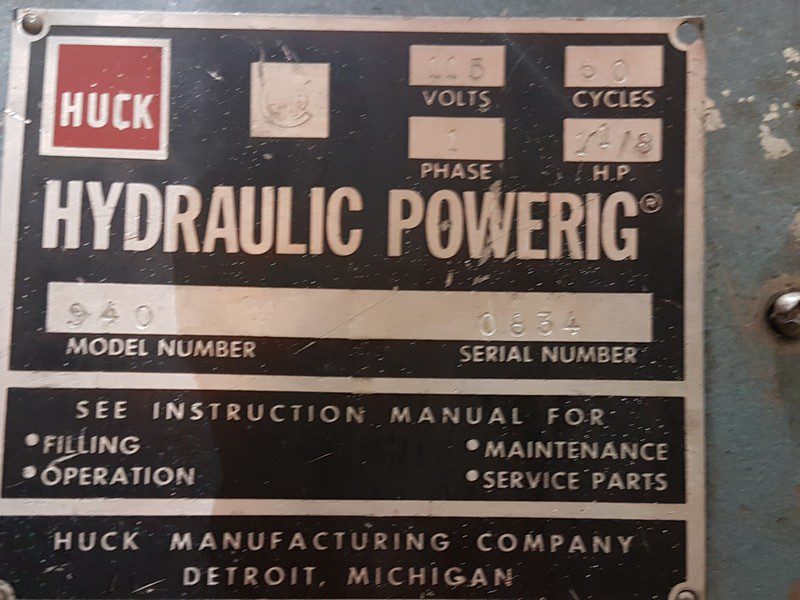

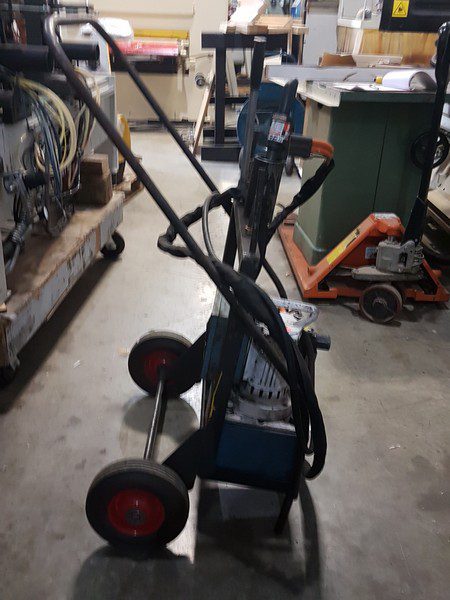

HUCK Powerig 940 Hydraulic Power Unit with Huck Rivet Gun

Features and Specifications:

• Power: electric
• Voltage 115 or 220 volts
• 1 PH
• Flow Rate: 70 cubic in/min @ 5,000 psi
• Reservoir Capacity: 1.5 gallons
• Options: 220V, 60/50 hertz

Huck® Powerig® Hydraulic Power Unit, 70 cu. in./min Flow Rate, 2.6 gal (9.8L) Reservoir Capacity, 5400 to 5700 psi (372 to 393 bar)
Pull Pressure, 2200 to 2400 psi (152 to 165 bar) Return Pressure, 1200 RPM Motor Speed, 115 VAC Voltage Rating, 1 Phase, 50/60 Hz Frequency,
1-1/8HP Horsepower, 25A Amperage, 13.9 Inch (353.06mm) Length, 16.1 Inch (408.94mm) Width, 18.5 Inch (469.90mm) Height, 0 to 150 Deg F (-18 to 65 Deg C)
Operating Temperature, Hydraulic Fluid: Automatic Transmission Fluid meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent, Solenoid-Operated Directional Valve,
24 VAC Control System, Weight 66lb. (29.94kg)

Cart Not included

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
