SKU: 545-1

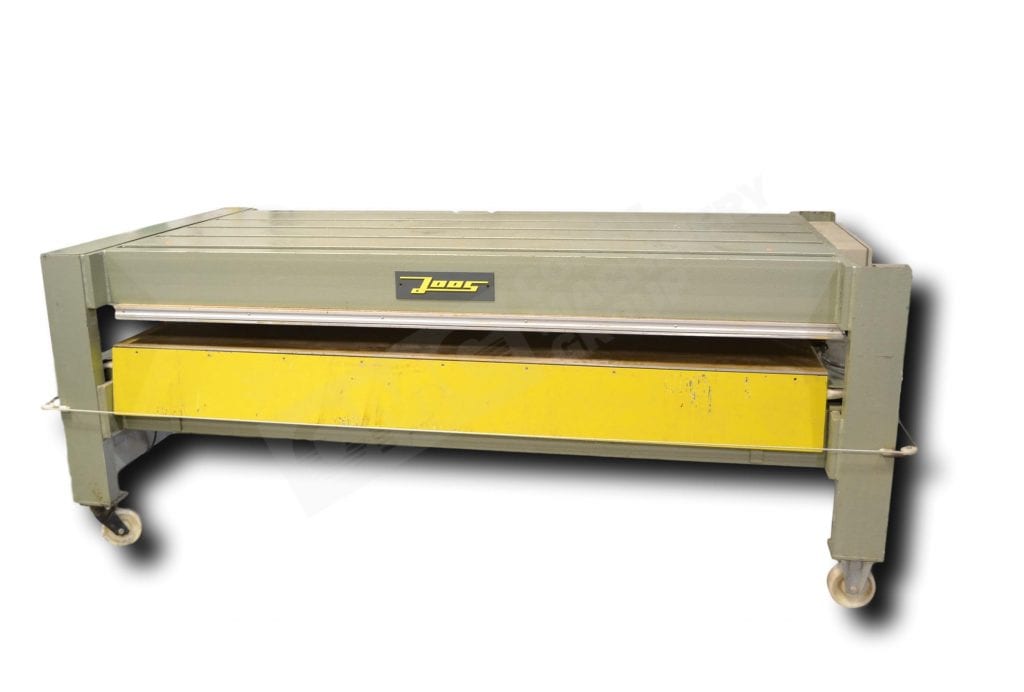

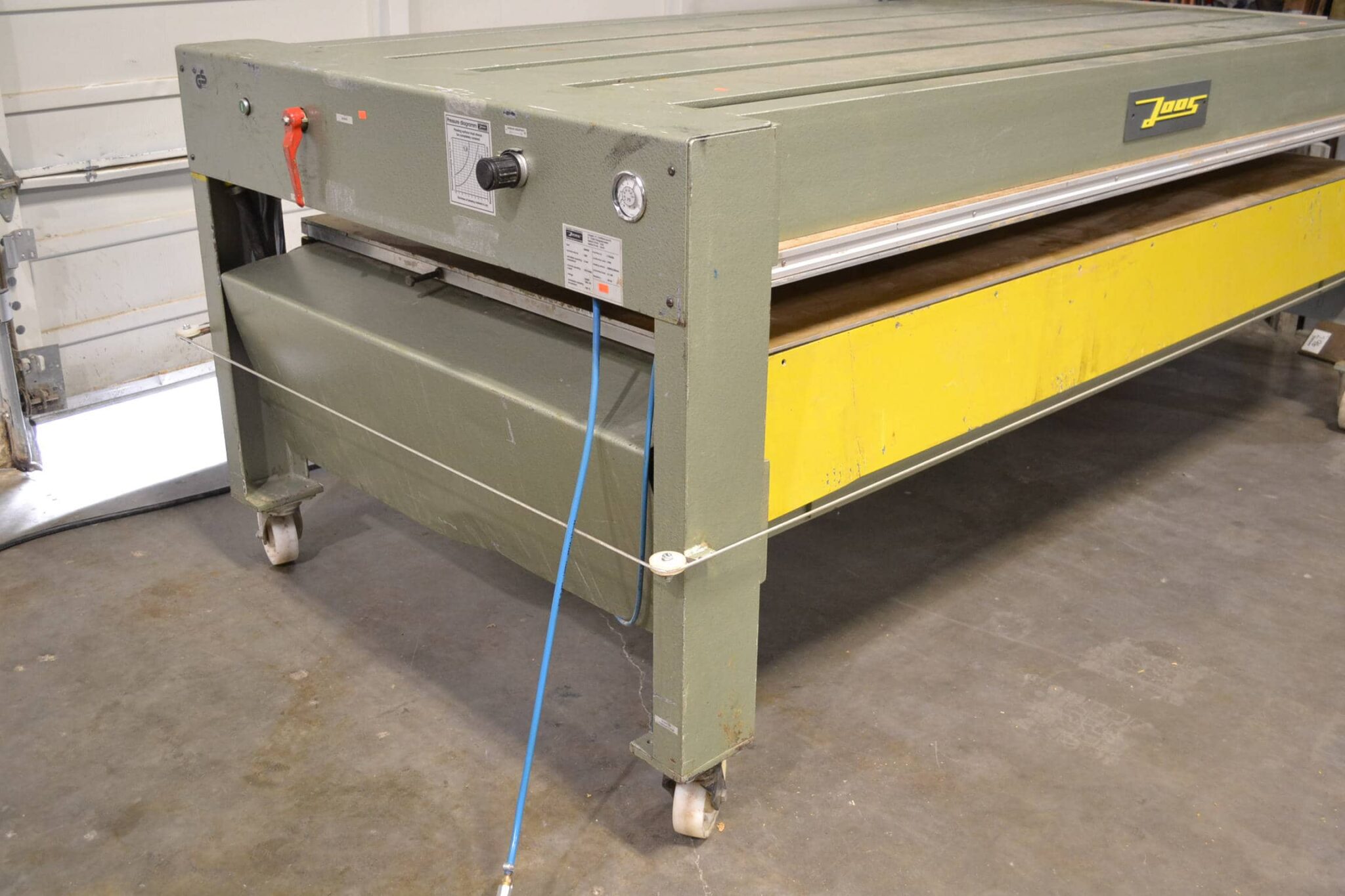

Joos Junior Hot Press

Out of Stock But wait, we have similar products

Features and Specifications

  • Electric: 220v; 3ph; 60hz; 6,1 kw; 85psi
  • Platen size: 98.4″ x 49.2″; opening/stroke 4-3/4″
  • Sideway sliding bottom platen, in/out for layup & loading
  • 80 tons max. pressure @ 39 PSI specific
  • Pneumatic airbag pressure system @ 85 PSI using 14 airbags
  • Micro-chronometer pressing cycle timer
  • Separate temperature adjustment for top & bottom platens
  • Electrically heated for up to 90 C (190 F) operating temperature
  • Low energy usage @ 3 kW heating consumption for each platen;
  • Gold anodized platens; individual thermostat controls.
  • Caster mounted Press for easy movability;
  • “safety” pull rope on all 4 sides.

Advantages of the JOOS-JUNIOR-PRESS  at a glance.

  • Entry level price
  • Heavy frame construction
  • Sliding lower heating platen
  • Open on all sides for step pressing
  • Gold anodized heating platen
  • Designed for easy operation
  • Comes ready for operation
  • Completely mobile, mounted on wheels

Specifications are approximate and to the best of our knowledge.

Please call for more information.

Weight 1111.3 lbs
Dimensions 110 × 57 × 44 in
Brand
Model
Voltage
Phase
Amps
Serial
