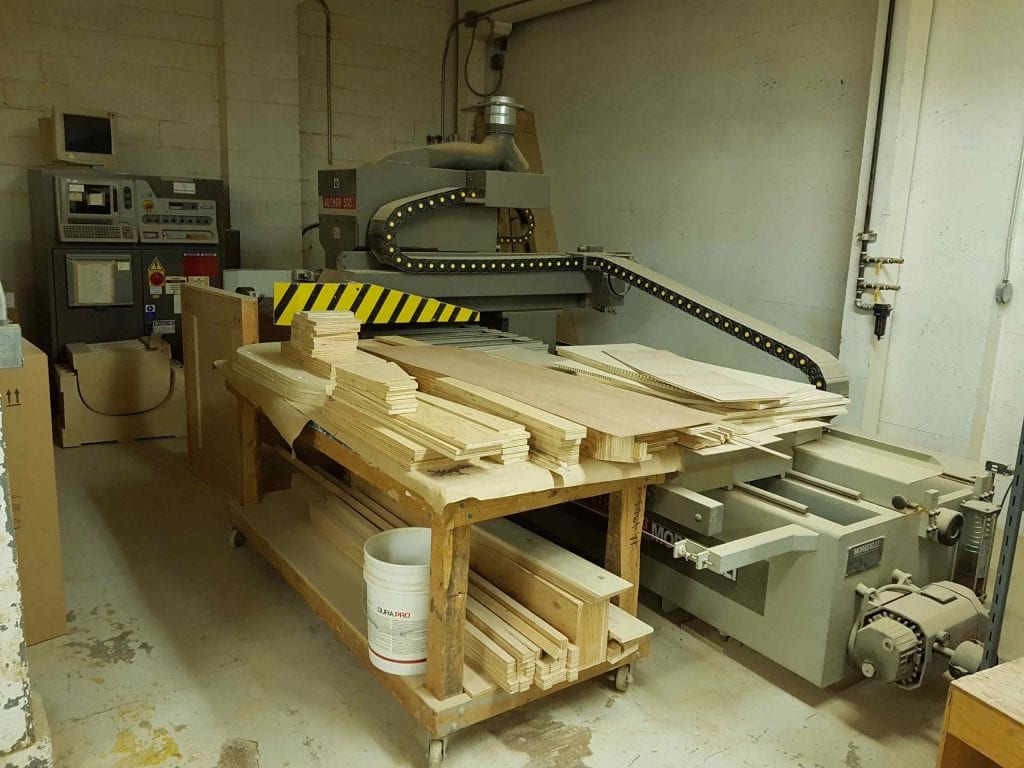

MORBIDELLI Author 503 CNC Machining Center

MORBIDELLI Author 503 CNC Machining Center

SKU: 539-24

CAD $11,400.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Features and Specifications:

  • Separate control cabinet with Morbidelli “NUM 1040M” Base controller, CNC 32-Bit MOTOROLA 68020 microprocessor,
  • Windows based operating environment, 1.2 GB hard drive, 10″ color monitor, ergonomic keypad, 3-1/2″ disk drive, and (2) serial ports RS-232 & RS-242 (requires no 3rd party CAD system for downloading programs).
  • Offers incredible list of functions from (a) auto-diagnostic to (z) zooming; controlled acceleration-and-deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear
    using space-and-time criteria, programs can be transferred via diskette or downloaded by wire.
  • Additionally equipped with an On-board mini CAD with built in programming for writing circles, ellipses and angles with only a few key strokes; on-board cycle optimization, on-board calculator, mirror imaging and repeat imaging.
  • working length x-axis 2,600 mm
  • working width y-axis 1,050 mm
  • working height y-axis 80 mm
  • tool changer 10 fach
  • main spindle 7,3 kW
  • Control: ESA TRIA 7500
  • Pod and rail table with working range 2990 x 1050,
  • Work piece thickness max. 80 mm
  • Router head 5.5 kW
  • drilling head vertical x-axis 9 piece
  • drilling head vertical y-axis 9 piece
  • drilling head horizontal x-axis 4 piece
  • drilling head horizontal y-axis 2 piece
  • saw unit x Richtung
  • control Tria 7500
  • Tool changing positions 10
  • Boring spindles vertical 18
  • Dimensions (l x w x h) approx. 5,500 x 2,450 x 2,200 mm
  • Weight approx. 5,000 kg

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.



Details

Brand

Morbidelli

Model

Author 503

Voltage

230 V

Phase

3

Serial

AL 2124

Manufactured Year

1995
