Features and Specifications:
- 400V/33Kw/3Ph/50 A
- Year of MFG 2001

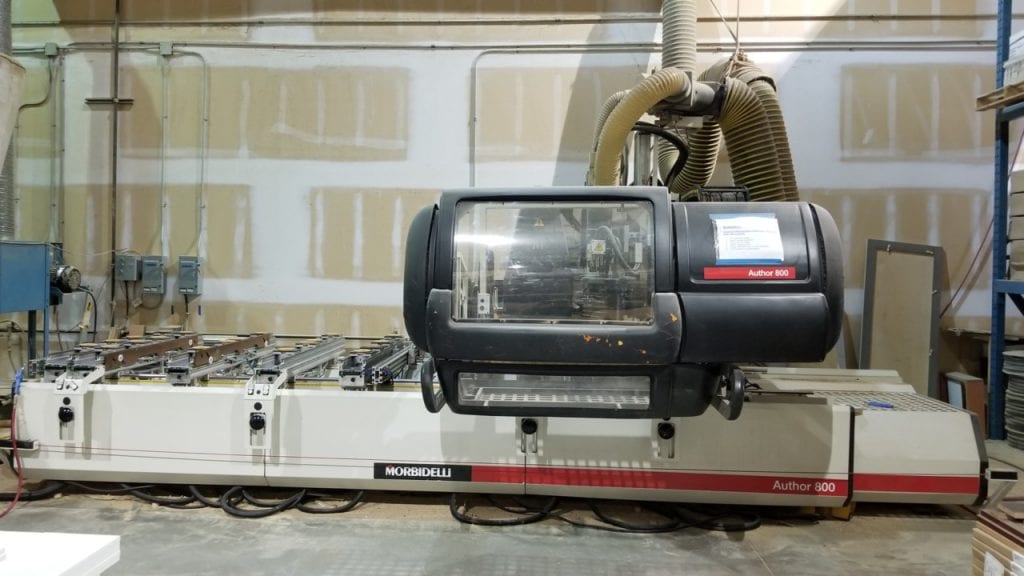

- Morbidelli introduces the Author M800 new generation of CNC Machining Centers with sturdy bridge frame able to execute any boring, grooving and 5 axes routing requirements.
- The machine is the perfect solution for any manufacturer requiring high processing speed and/or heavy applications work as well.
- The machine can be configured with a variety of working units and can up to 26 independent drill spindles and an on board tool changer with up to 32 tools.
- X axis working area mm 6500 Y axis
- working area mm 1550
- Panel passage mm 130
- Max independent vertical spindles 18
- Max independent horizontal spindles 8
- Boring head speed rpm 6000
- Integrated Saw-blade diameter mm 120
- Electrospindle kW (S1) 8,5 / 14
- Tools available on the Tool Change Crib 32
- Weight machine kg 6000
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Details
| Weight | 6000 kg |
|---|---|
| Brand | Morbidelli, SCM |
| Model | Author 800 |
| Voltage | 400 V |
| Phase | 3 |

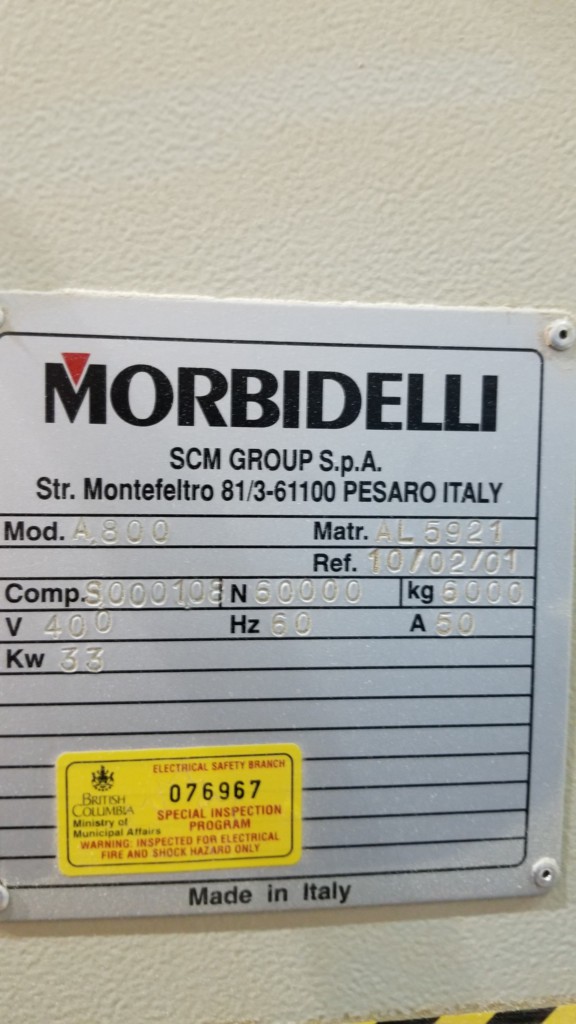

| Serial | AL 5921 |
| Manufactured Year | 2001 |
