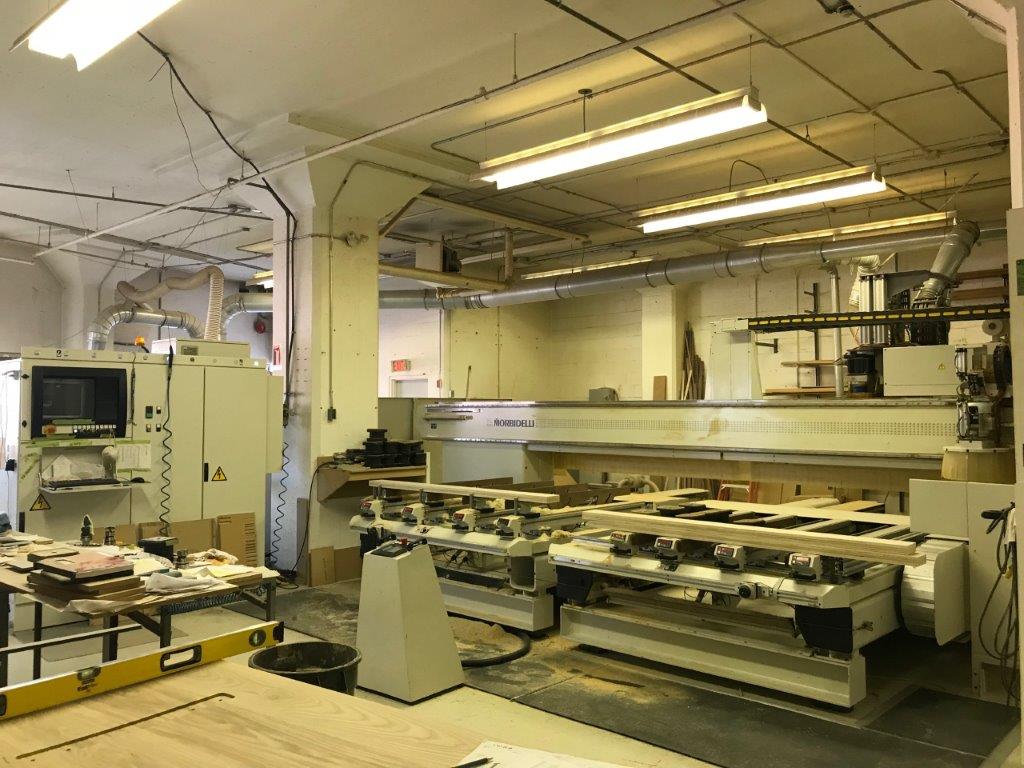

Morbidelli Planet Super CNC Twin Table Router

Morbidelli Planet Super CNC Twin Table Router

SKU: 539-15

CAD $45,000.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Features and Specifications:

  • Multifunction machining centre with high production rate, for completely machining shaped panels with edging application and finishing.
  • Planet is for all companies which make furniture for offices and shops and want to work to order or in batches, thanks to simultaneous machining of two panels on the mobile worktables.
  • X working area (1 panel) mm 4000 – 4600
  • X working area (2 panels) mm 1600 – 1900 – 3000
  • Y working area mm 1600 – 1900
  • Boring spindkes n. 24
  • Electrospindle power kW 15
  • Rapid capacity n. 12
  • Edge height mm 12 – 65
  • Edge thickness mm 0,4 – 3 (depending on the material)
  • Coils storage capacity n. 2 – 4 – 6 –

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Details

Weight15000 kg
Brand

Morbidelli, SCM

Model

PLANET SUPER

Voltage

400 V

Phase

3

Serial

AL/008400

Manufactured Year

2007

Amps

117 A
