SKU: 654-7

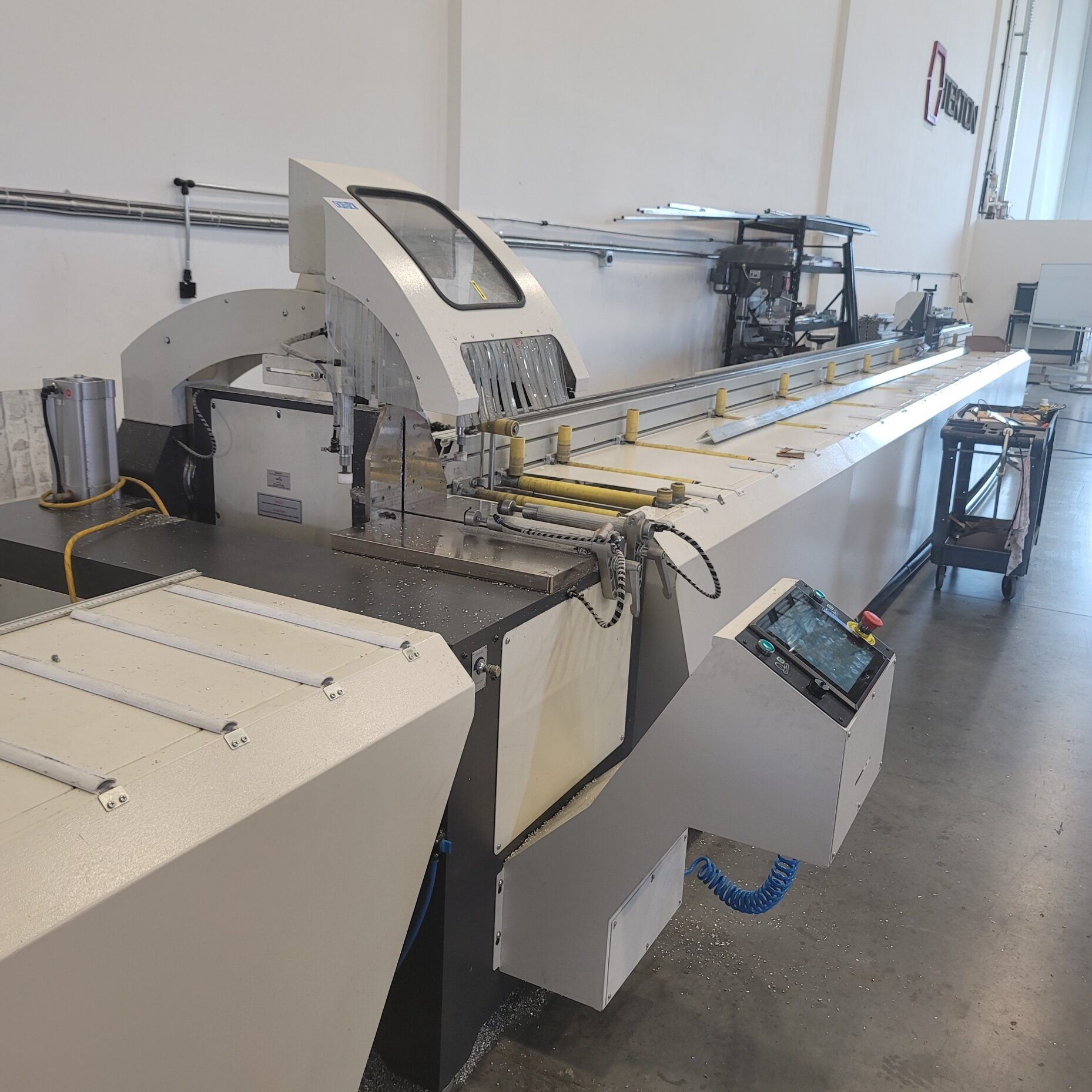

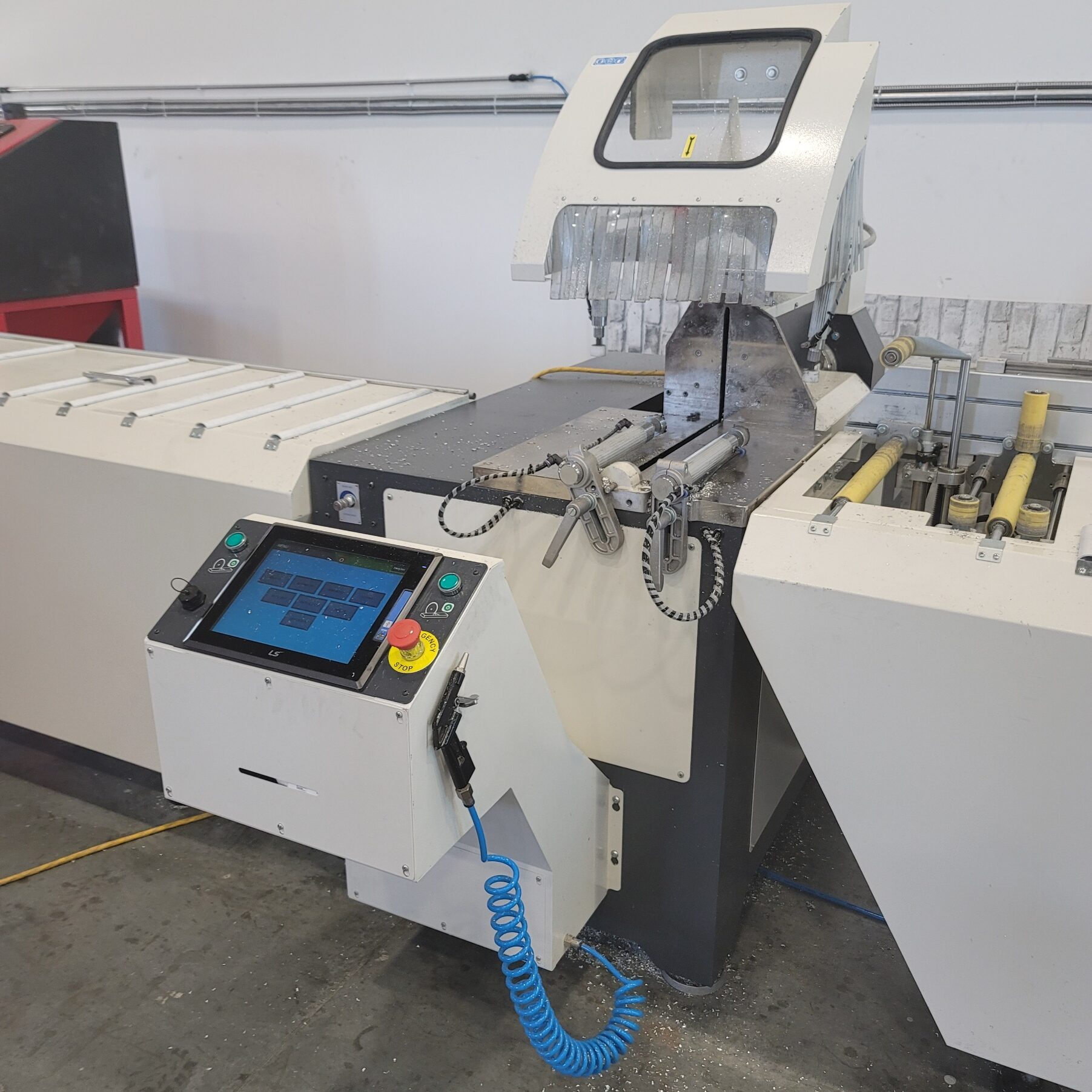

OZ Leo Plus programable cut line

Out of Stock But wait, we have similar products


​Used for cutting processes of aluminum and PVC profiles.

  • Hydro-Pneumatic cutting

  • Servo controlled rotation axis

  • Automatic positioning at all degrees between -22.5° and +45° with servo motion system

  • Pneumatic holder robot with servo axis control and manual adjustment feature for accurate positioning of profiles

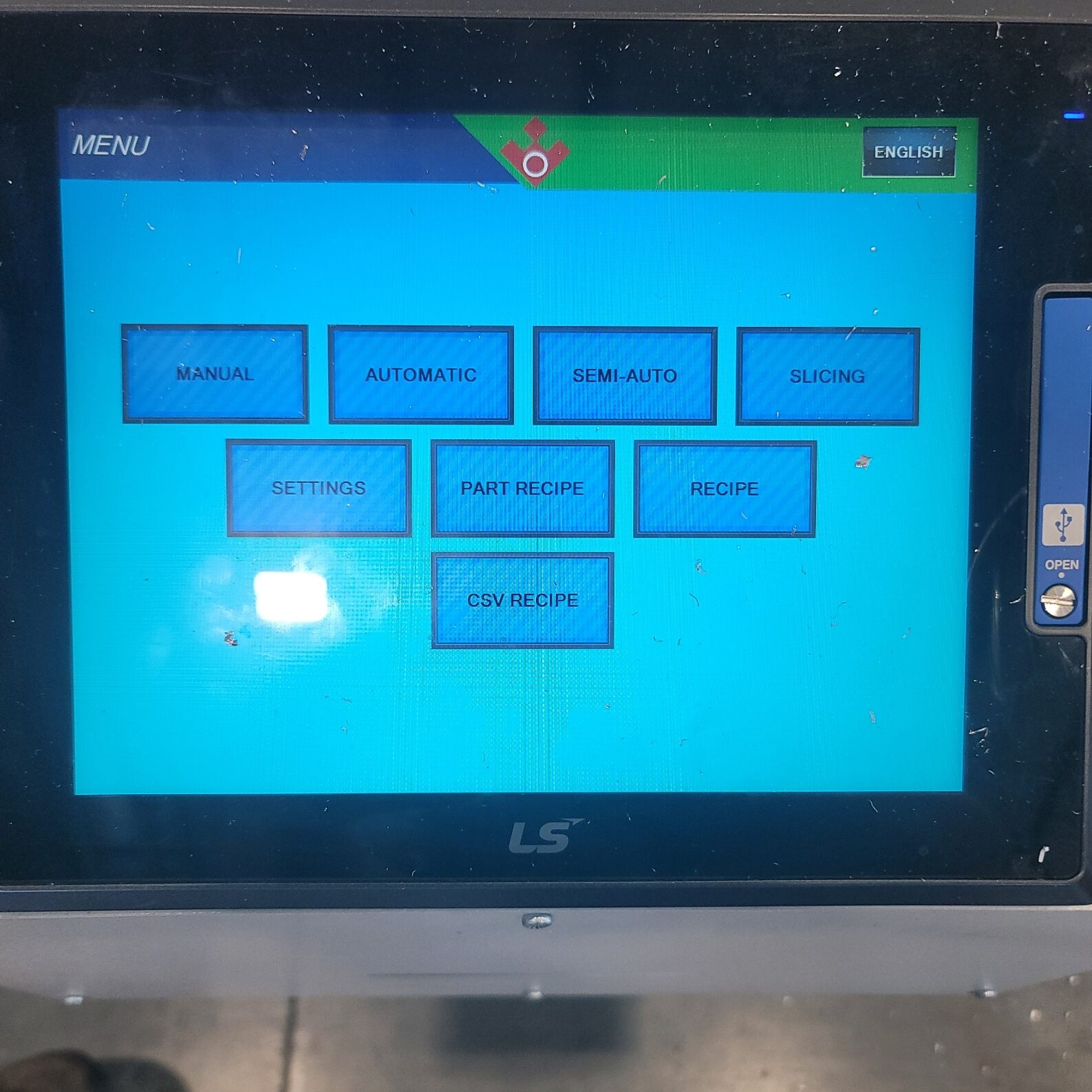

  • Industrial PC with Windows based touchscreen and easy to use practical interface

  • Remote access

  • Data transfer over remote network connection, Ethernet and USB

  • Batch processing and precision cutting

  • Secure cutting by the cover equipped with a safety sensor

  • Process programming and large memory

  • Double hand control application

  • Adjustable saw blade travel speed

  • Ability to control saw blade travel distance

  • Ability to perform cutting automatically from the list or manually

  • Automatic horizontal clamps

  • 90° and angular slicing

  • Automatic size calculation for mold cutting

  • Output conveyor with manual gauge

  • Resume cutting feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces.

  • Ability to send bar code information of different profile batches by profile list input without using a cutting optimization program and ability to choose profile from the list in batch cutting

  • Ability to use full length of loaded profile (Excluding angle and cutting waste)

Standard Equipment

  • Output conveyor with manual gauge

  • 32″ saw blade (1 pcs)

  • Cooling system
