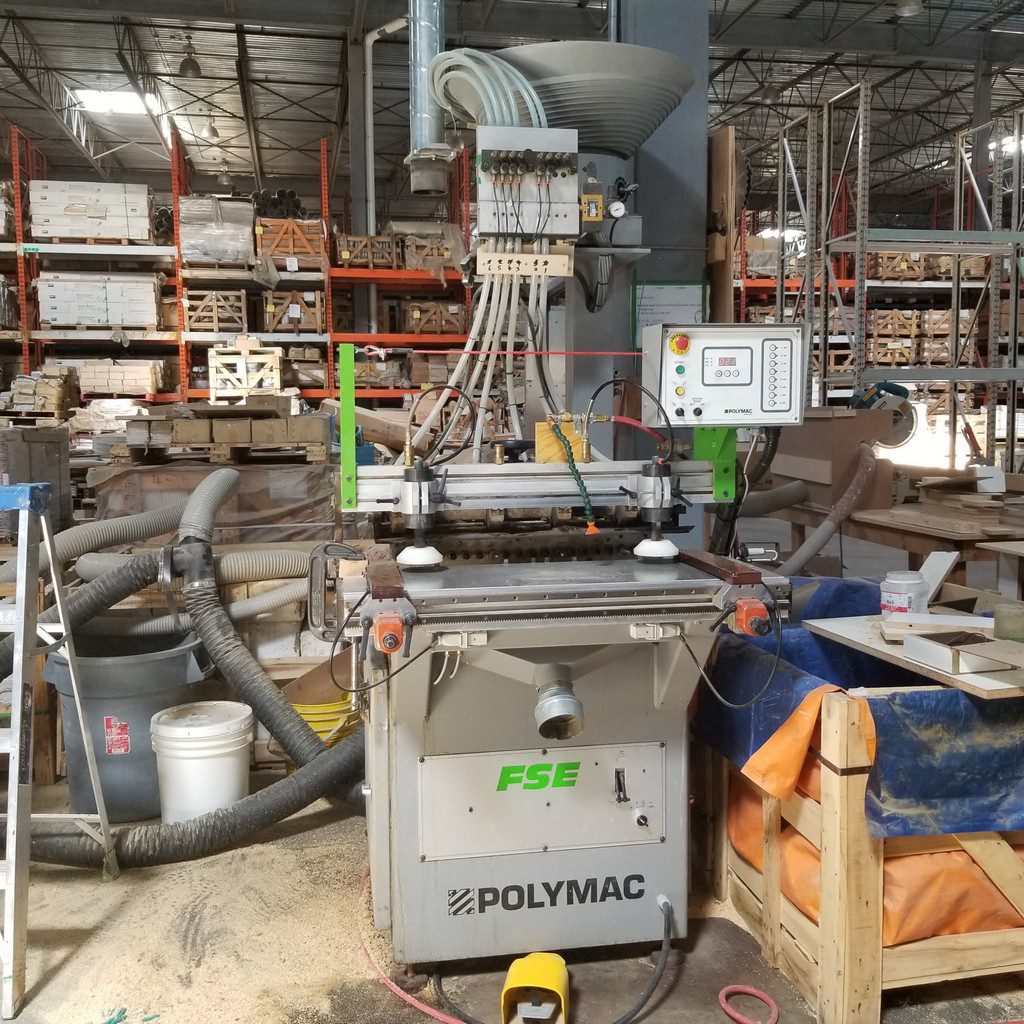

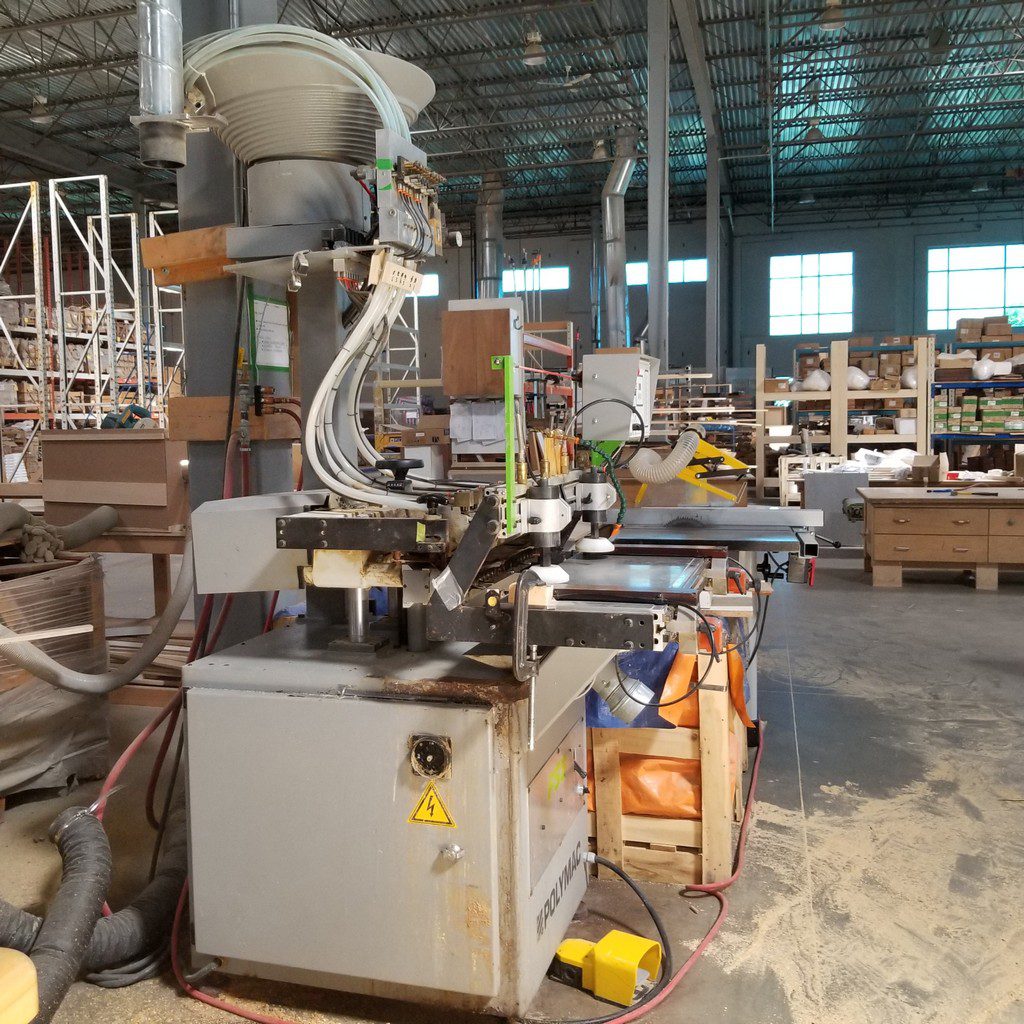

Biesse Polymac FSE Dowel Inserter

Biesse Polymac FSE Dowel Inserter

SKU: 587-4

CAD $12,500.00

1 in stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Specifications:

  • Glue and Dowel Insertion System
  • (21) Spindle head (on 32 mm centers) fixed horizontally for end boring
  • (5) Glue injectors & dowel inserters
  • (2) Overhead pneumatic holddown clamps
  • Handles 8 mm – 10 mm dia. dowels
  • Max. boring depth 70 mm
  • Height adjustment w/digital readout for panel thickness
  • After the drilling cycle is complete, the head assembly traverses down to the glue & dowel injector line for the dowel injection
  • Quick cycle time
  • Function selector control for boring only, inserting only, or boring & inserting
  • Hydraulic brakes for adjustment of boring speed
  • 2.3 HP – 4,000 RPM motor
  • (2) Side fences
  • Front support table w/stop
  • Glue reservoir tank with pressure control & rinsing tank for glue nozzles
  • 6-Way dowel feeding vibrator
  • Foot pedal for starting cycle
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.

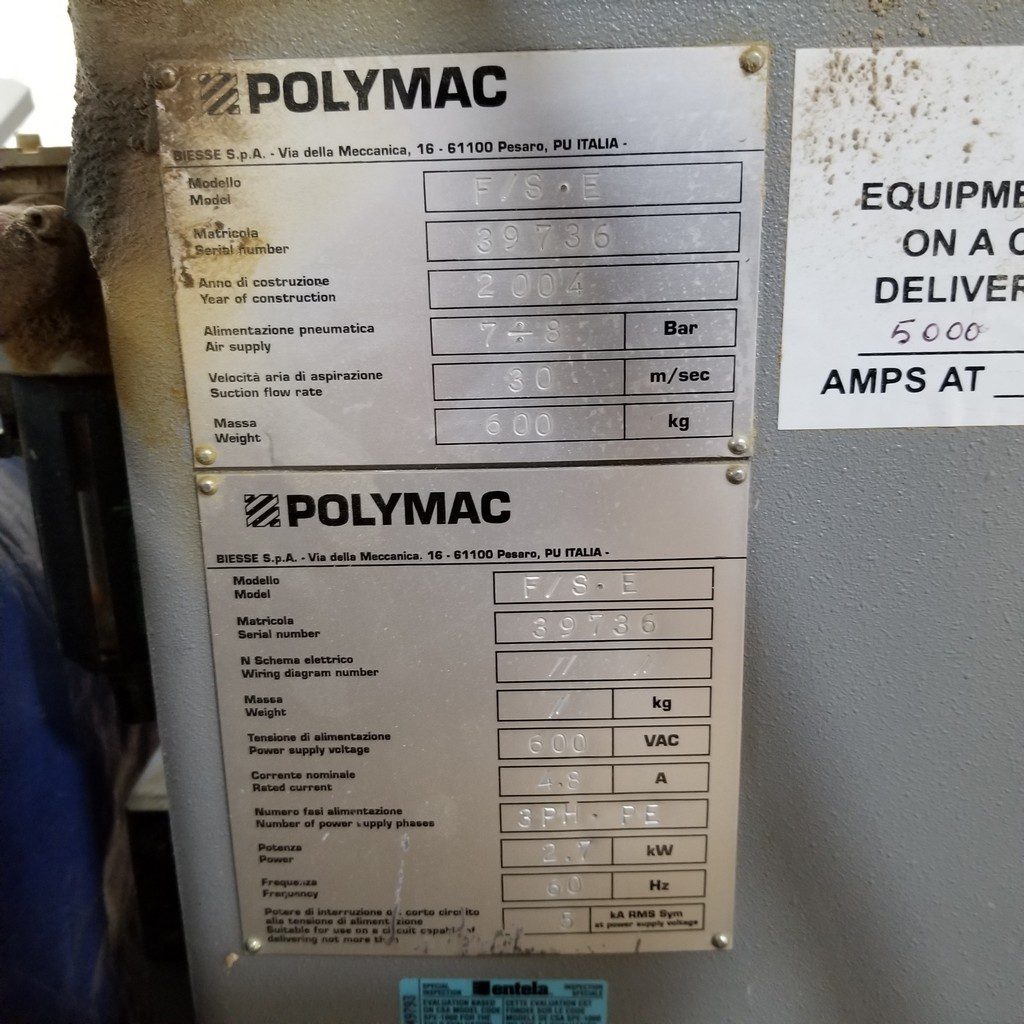

Details

Weight600 kg
Dimensions54 × 41 × 91 in
Brand

Polymac

Model

F/S.E

Serial

39736

Voltage

600V, 60Hz

Phase

3 Ph

Manufactured Year

2004
