SKU: 812-1

Precix CNC Router

Out of Stock But wait, we have similar products

Specifications

  • Closed Loop Servo Driven CNC

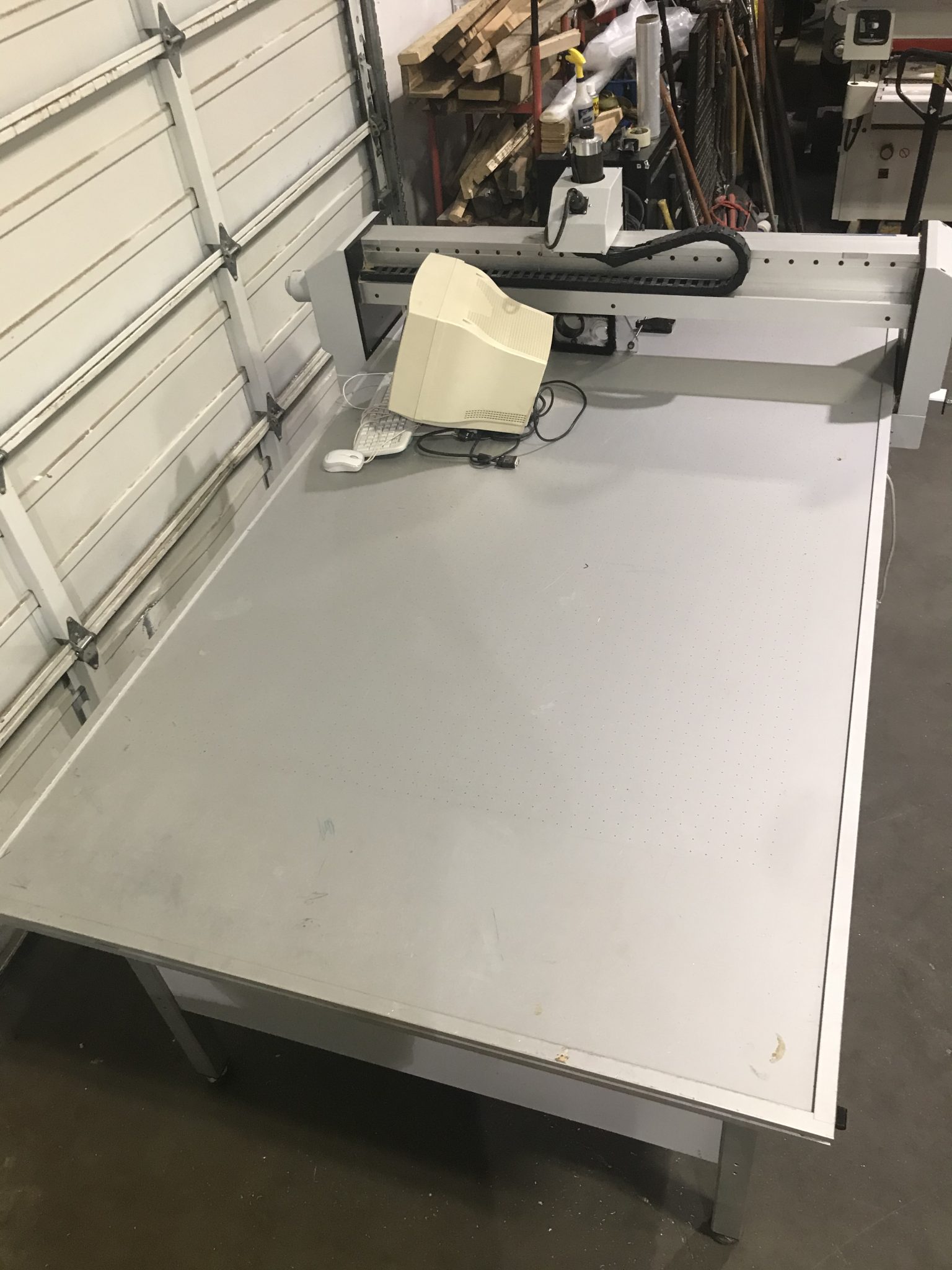

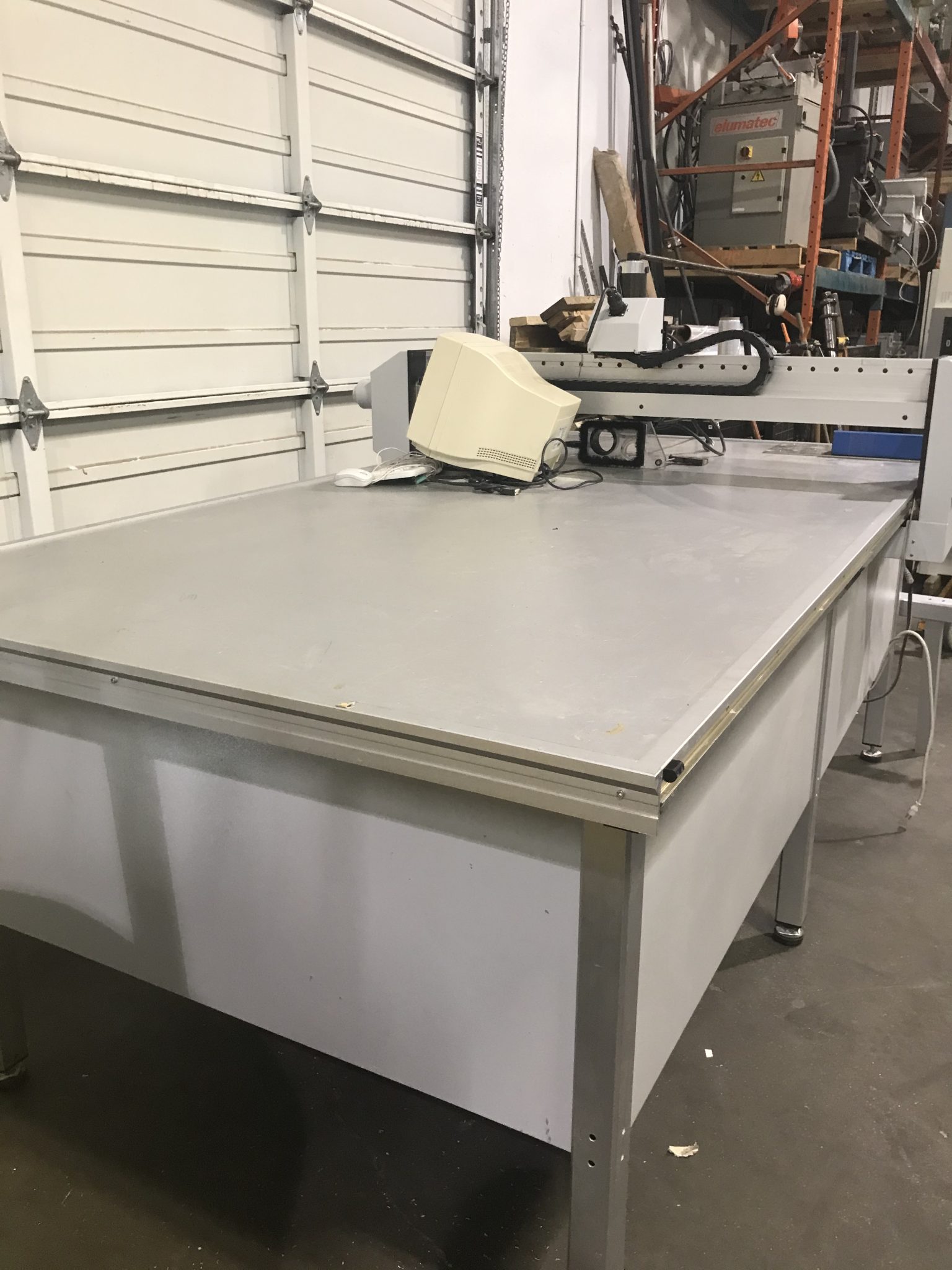

  • 52″ x 98″ Work Area Y & X Axis.
  • 5″ max gantry clearance on Z Axis

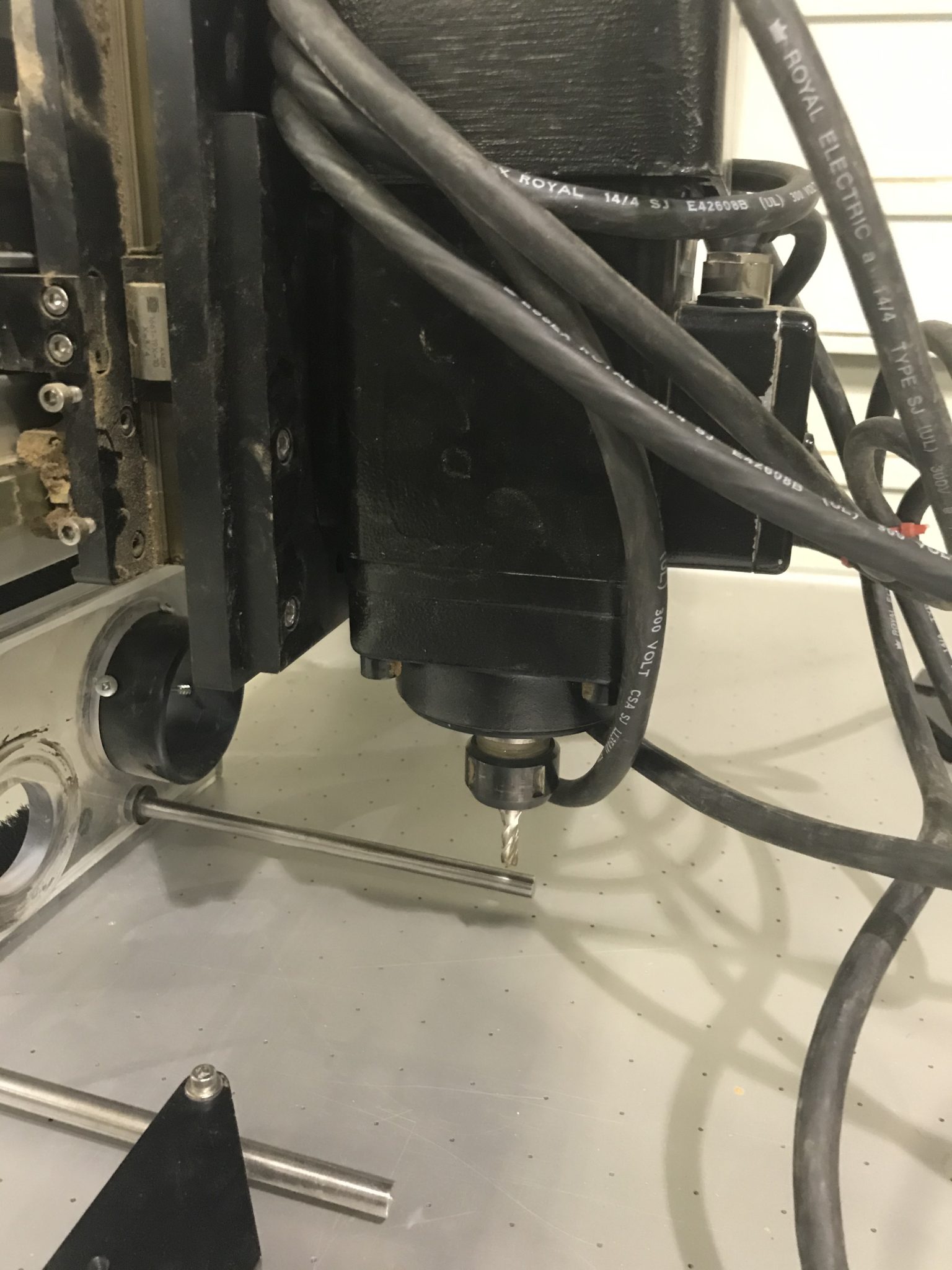

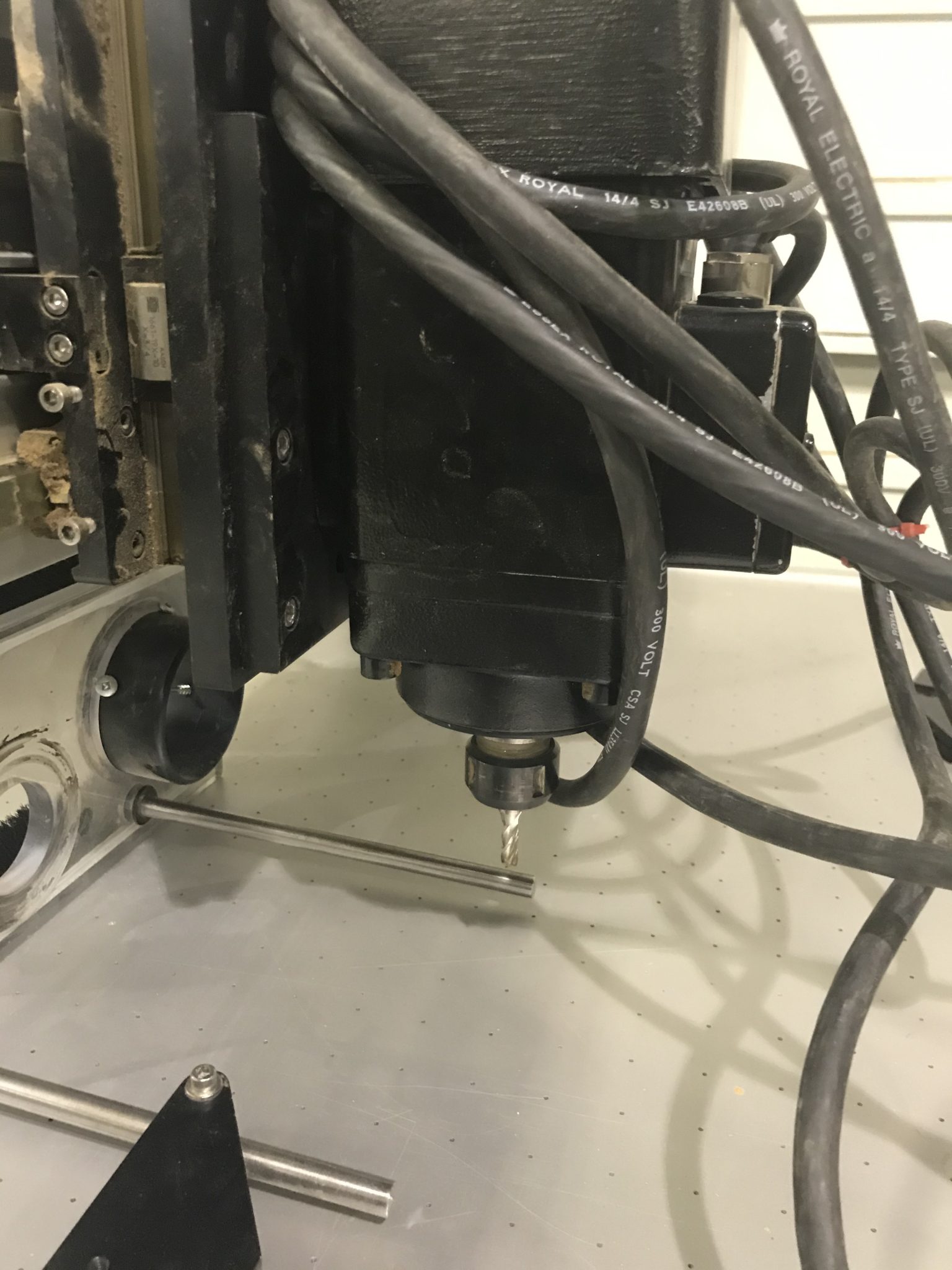

  • 5hp 3 Phase Spindle (Brand New)
  • Single piece Aluminum Table. With Phenolic Top and T Slots
  • MDF Vacuum Hold down Table
  • CNCdrive DG2S Drivers

Can mill woods, plastics and nonferrous metals with ease.

Originally built by a ISO 9002 accredited aerospace contract CNC manufacturer

Brushed Servo motors with feedback control to encoders

Star Linear rail system from Mannesman Rexroth

The X & Y drive system on the table incorporates a Kevlar stainless steel belt that is structured as modern day rack and pinion system.

Zero Backlash Ball Screw drive system on the Z Axis.

Table and Gantry were built with aerospace grade aluminum alloys to get maximum strength-rigidity to weight ratios.

Highly configurable MDF vacuum hold down table.

Phenolic table top with channels for clamps and 4 zone large vacuum system built into stock table.
