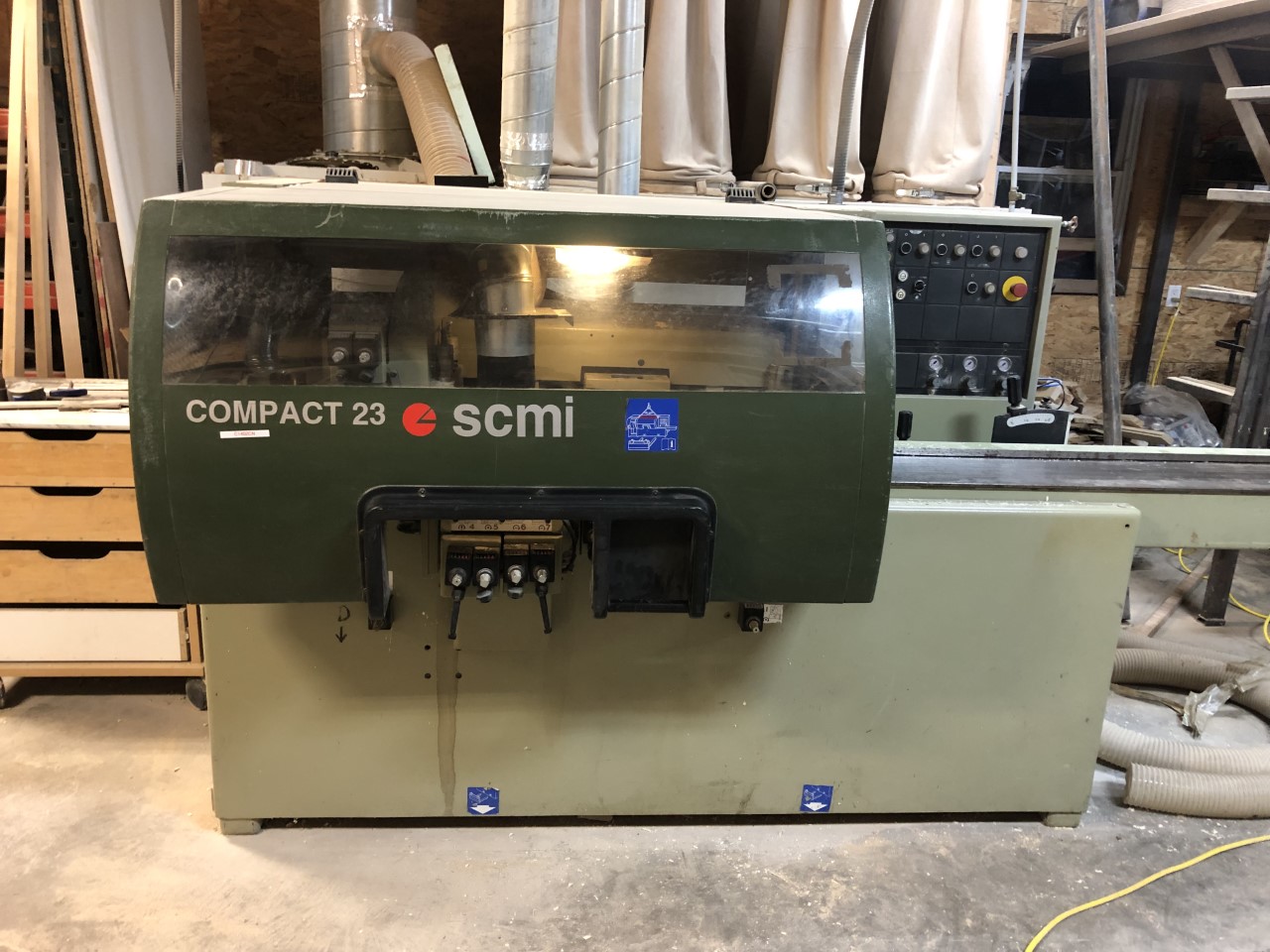

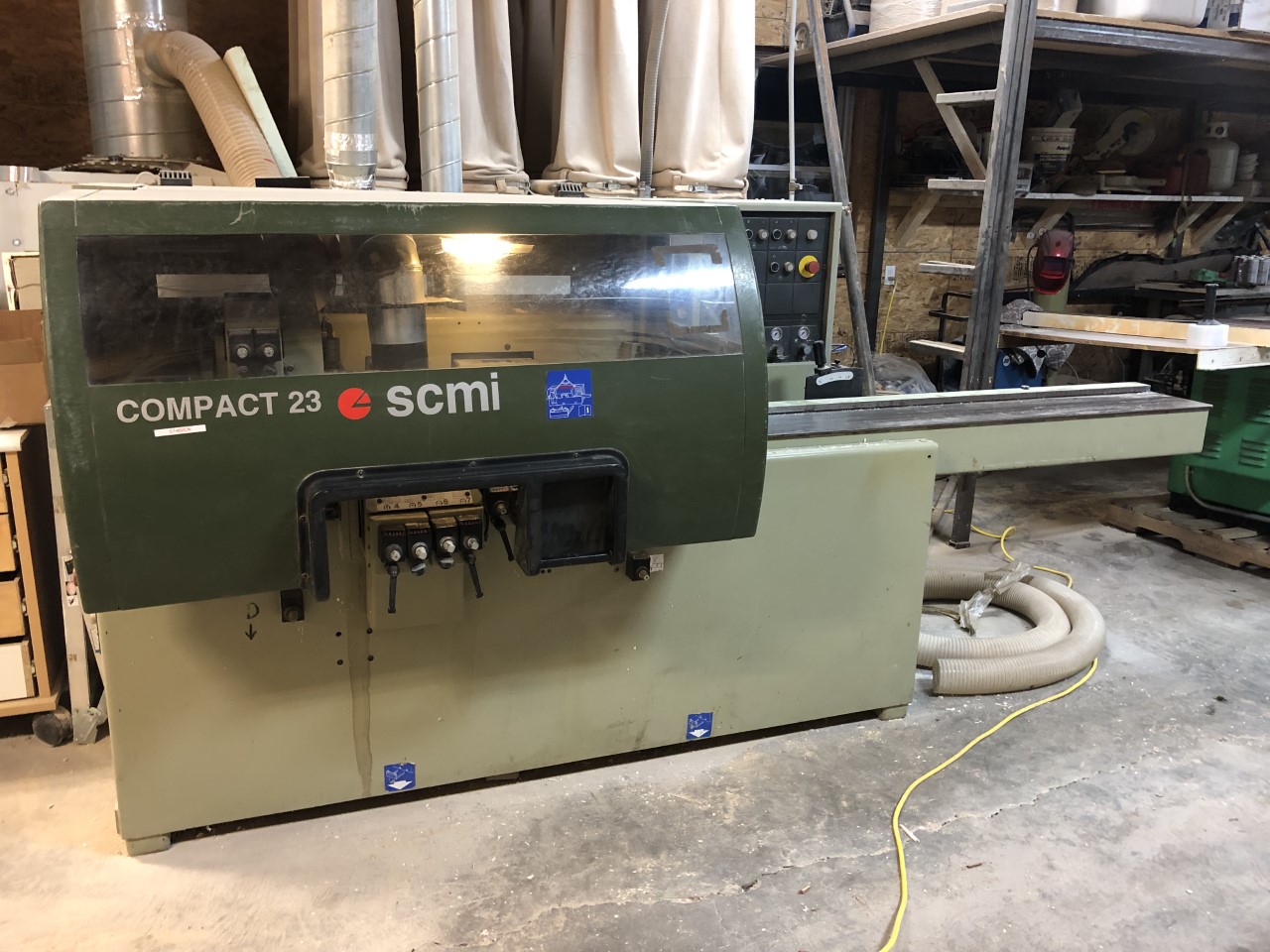

SCM Compact 23 S Moulder

Specifications

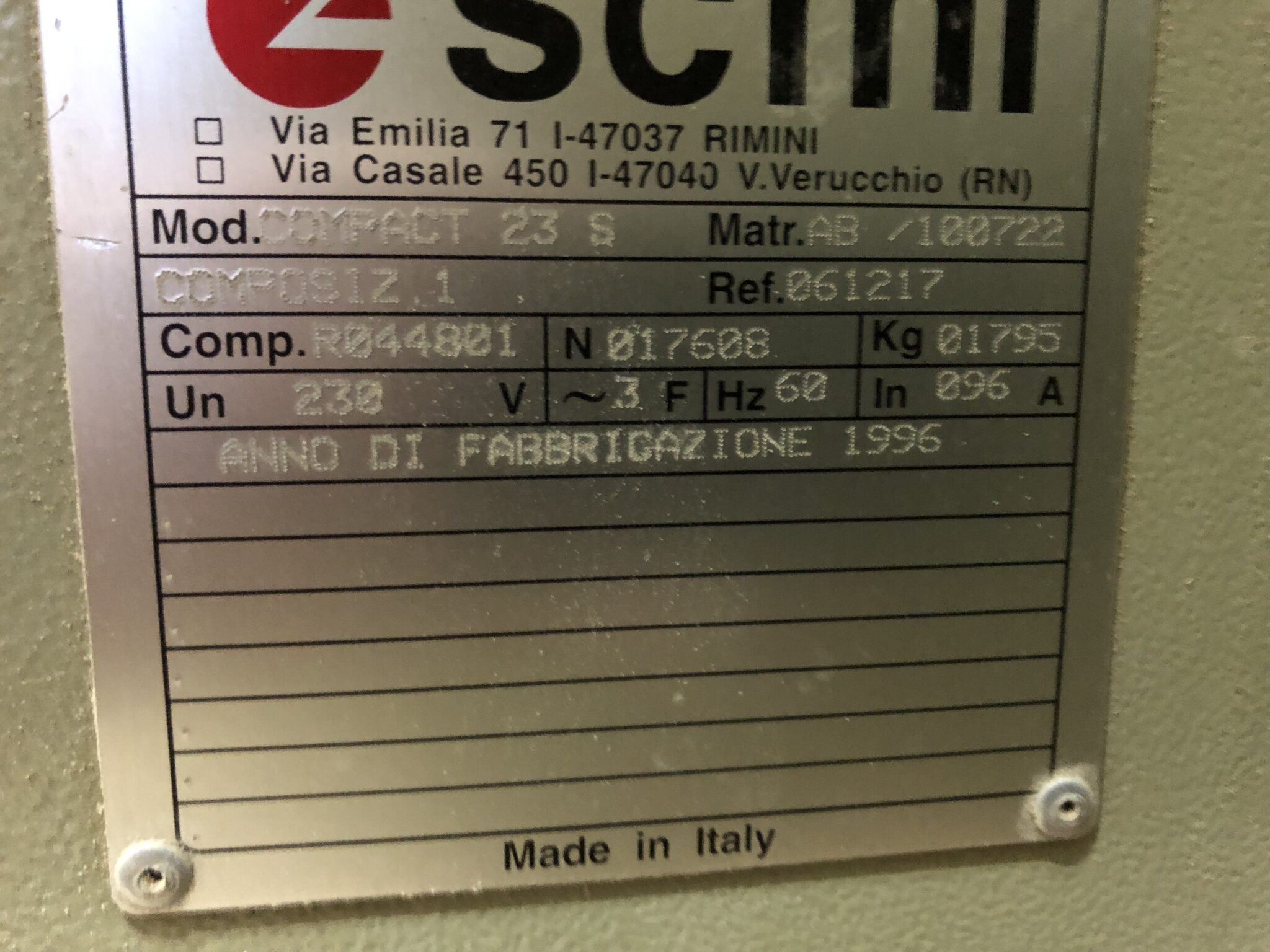

• S/N: AB/100722
• 230 V
• 96A
• 3 Phase
• 5 Head Moulder
• Lots of tooling included
• Mfg Year: 1996
• Profiling capacity : 40mm
• Max work width : 230 mm
• Max work height : 125 mm
• Cutter speed 6,000 rpm
• Feed speed : m/min 6/12 o/or 4/22
• Horizontal cutter working length 245 mm
• Vertical cutter working length 140 mm
• Min. profiling tool diameter 100 mm
• Max. profiling tool diameter 180 mm
• Feed rollers diameter : 120 mm
• Infeed surface length : 2.000 mm
• Infeed surface adjustment range : 0-10 mm
• Infeed guide adjustment range : 0-10 mm
• Standard drive motor power :
  • Planer 5.5 Hp
  • Vertical spindles 7.5 Hp
  • Upper horizontal spindle : 5.5 Hp
  • Second bottom horizontal spindle : 7.5 Hp
  • Universal spindle : 5.5 Hp

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
