SKU: 788-1

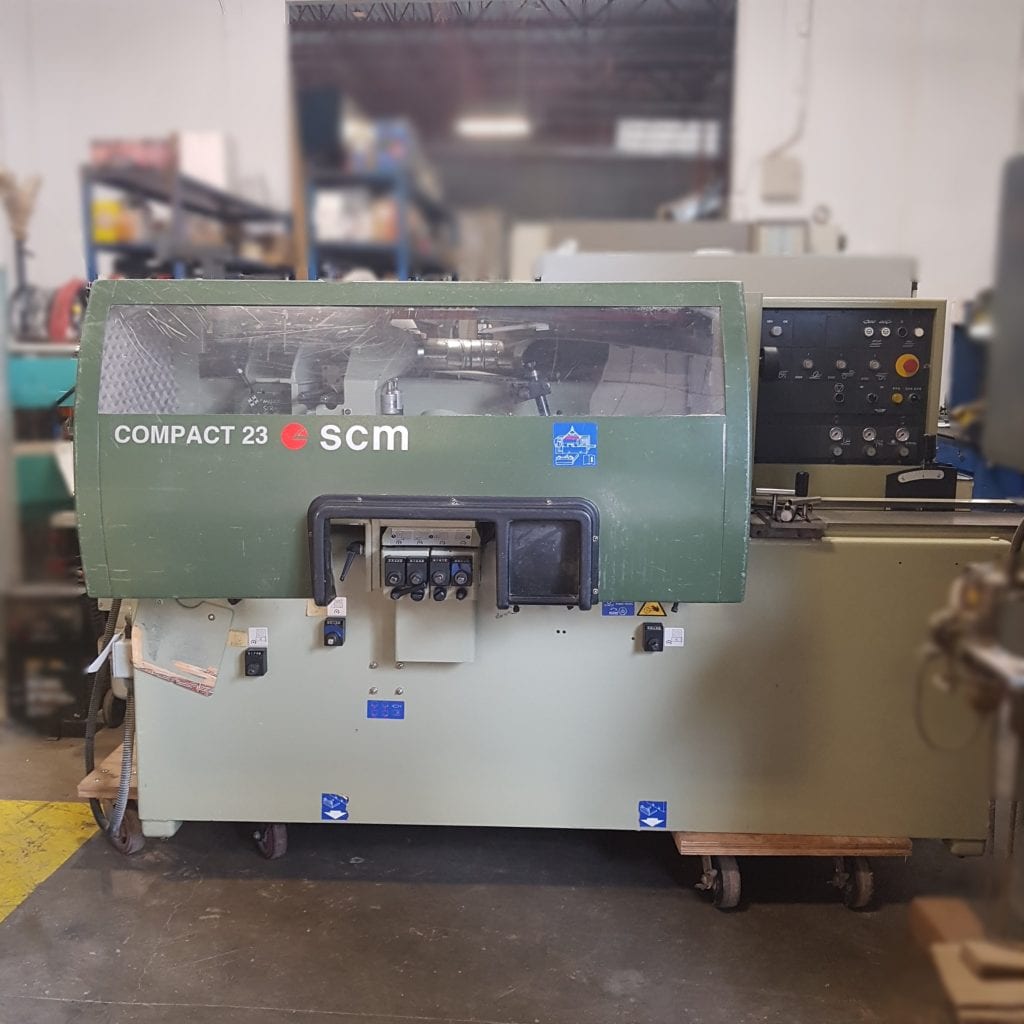

SCM Compact 23 S Moulder

CAD $11,500.00

In stock

SKU: 788-1

SCM Compact 23 S Moulder

CAD $11,500.00

In stock

Specifications:

  • 3 phase
  • 60 hz
  • 600 V
  • 47 A
  • Serial No : 018884
  • Profiling capacity : 40mm
  • Max work width : 230 mm
  • Max work height : 125 mm
  • Cutter speed 6,000 rpm
  • Feed speed : m/min 6/12 o/or 4/22
  • Horizontal cutter working length 245 mm
  • Vertical cutter working length 140 mm
  • Min. profiling tool diameter 100 mm
  • Max. profiling tool diameter 180 mm
  • Feed rollers diameter : 120 mm
  • Infeed surface length : 2.000 mm
  • Infeed surface adjustment range : 0-10 mm
  • Infeed guide adjustment range : 0-10 mm
  • Standard drive motor power :¬†
    • Planer 5.5 Hp
    • Vertical spindles 7.5 Hp
    • Upper horizontal spindle : 5.5 Hp
    • Second bottom horizontal spindle : 7.5 Hp
    • Universal spindle : 5.5 Hp
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
Weight 873.16 lbs
Dimensions 134 × 52 × 57 in
