SKU: 678-7

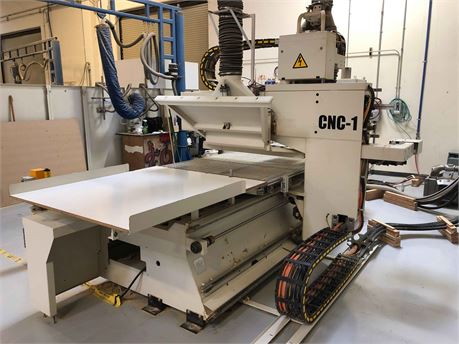

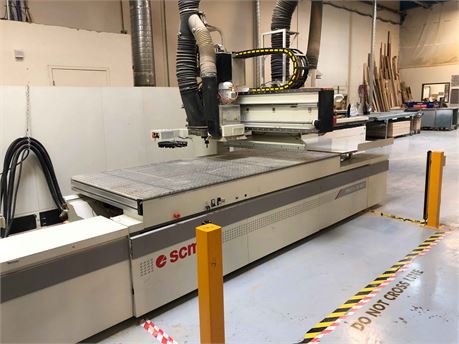

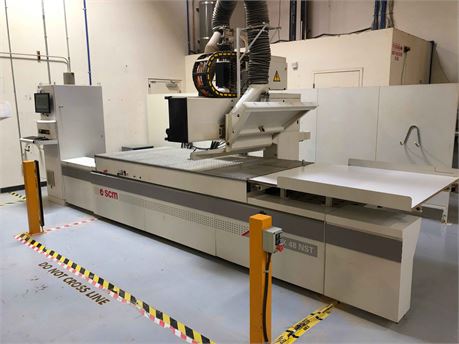

Used SCM Pratix 48 NST Nesting CNC

USD $35,422.00

In stock

Contact Us

Specifications:

  • Year of MFG 2005
  • 600 V
  • 60 Cy
  • 3 Ph
  • 4′ x 8′ Stationary aluminum table, machined with a “MATRIX” grid pattern for fixture parts.
  • Working field: “X” Axis is 106″ (2,690 mm), “Y” axis 51″ (1,295 mm), “Z” axis stroke is 13.3″ (340 mm); max. material clearance is 4.9″ (124 mm).
  • Positioning Speed: “X” & “Y” Axis is 246 FPM (75 MPM), “Z” axis is 98 FPM (30 MPM)
  • Closed loop AC Servo drive system driving precision ground ball screws; All axes ride on extra large precision profile linear guide ways.
  • Work Table: Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for “nested based machining”; pop-up pins on the table perimeter for part location.
  • Boring unit: 3 HP (2.2 kW) – 4,000 RPM motor; (1) “F 12” boring unit with (12) independent vertical spindles, (7) spindles in “X” axis & (5) spindles in “Y” axis.
  • (6) Horizontal spindles, (2+2) in “X” axis & (1+1) in “Y” axis; (1) 120 mm dia. saw blade in “X” axis.
  • Machining: (1) 10 HP (7.5 kW) “Power 2000” Electro spindle with HSK F63 tool adaptor; variable spindle speeds from 1,500 – 18,000 RPM.
  • (1) 8-Position traveling ATC tool carousel.

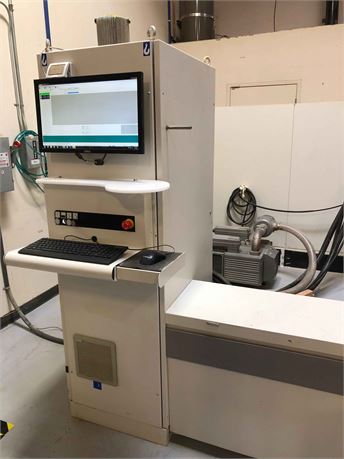

  • Operator & Machine Control: PC Front End with SCM “XILOG Plus” + “ASPEN 2004” + Windows “XP” operating system; 15″ CRT color display; 40 GB hard drive, 128 MB RAM;
  • Industrial keyboard & mouse; CD-ROM disk drive; all housed in air cooled cabinet.
  • Complete with: (1) 10 HP Capacity Vacuum Pump
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.

Make an Offer

Please provide a valid full name.
Please provide a valid email address
Please provide an offer price
Please type your message
Weight 1543.12 lbs
Dimensions 155 × 102 × 96 in
