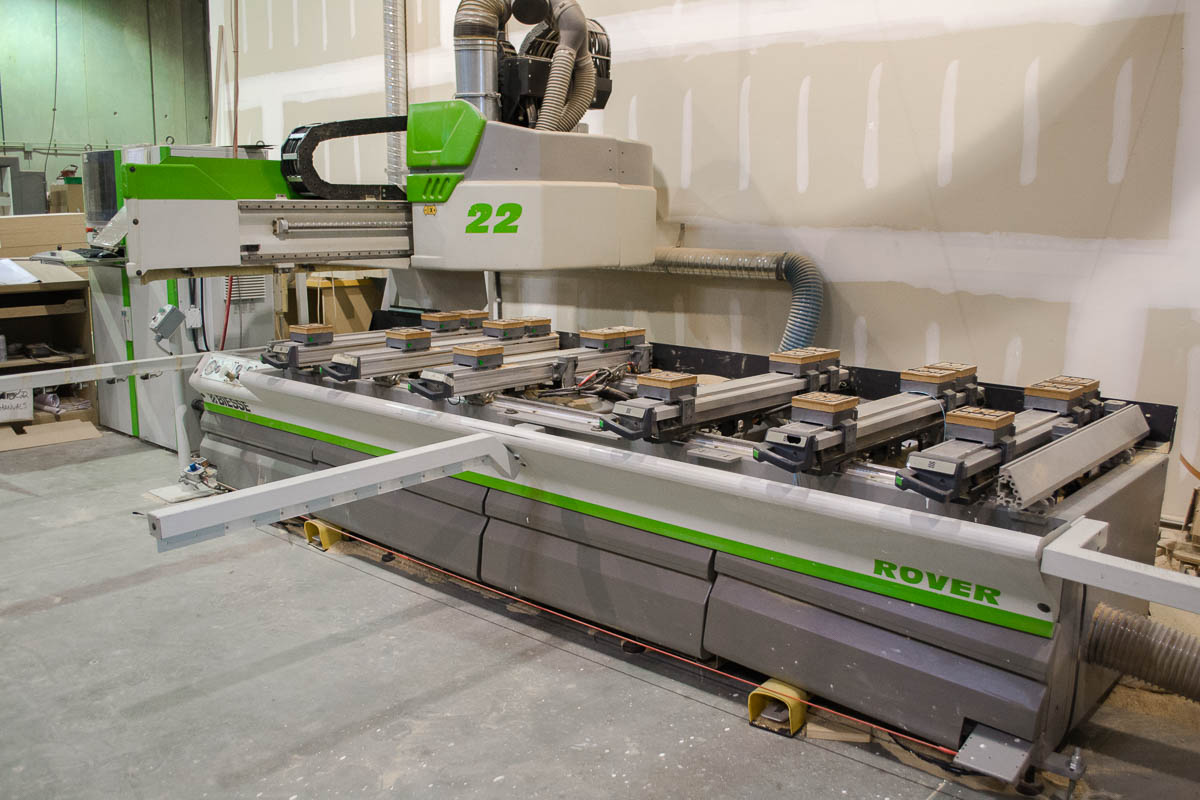

Biesse Rover 22 CNC Router

Sale!

Biesse Rover 22 CNC Router

SKU: 480-1

CAD $28,500.00 CAD $21,500.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

AXIS STROKES MM

  • X AXIS mm 3436 MM
  • Y AXIS mm 1470 MM
  • Z AXIS mm 250 MM
  • AXIS SPEEDS M/MIN
  • X AXIS m / min 100 M / MIN
  • Y AXIS m / min 95 M / MIN
  • Z AXIS m / min 30 M / MIN

DRILLING HEAD CONFIG

  • VERTICAL SPINDLES IN X AXIS Qty 7 (SEVEN) SPINDLES
  • VERTICAL SPINDLES IN Y AXIS Qty 7 (SEVEN) SPINDLES
  • HORIZONTAL SPINDLE IN X AXIS Qty 2 + 2 SPINDLES
  • HORIZONTAL SPINDLE IN YAXIS Qty 1 + 1 SPINDLES
  • DRILLING HEAD HP Hp 3.5 HP /2.5 KW
  • SAW BLADE IN X AXIS ( DIAM ) mm 120 MM
  • SAW UNIT MOTOR POWER Hp 3.5 HP / 2.5 KW

MAX BORING WORKING FIELD MM

  • VERTICAL BORING IN X AXIS (STROKE) mm 3436 MM
  • ACTUAL VERTICAL BORING IN X AXIS mm 3060 MM
  • VERTICAL BORING IN Y AXIS (STROKE) mm 1470 MM
  • ACTUAL VERTICAL BORING IN Y AXIS mm 930 MM
  • HORIZONTAL BORING IN X AXIS (STROKE) mm 3060 X 1470 MM
  • ACTUAL HORIZONTAL BORING IN X AXIS mm 738 MM
  • HORIZONTAL BORING IN Y AXIS (STROKE) mm 1470 MM
  • ACTUAL HORIZONTAL BORING IN Y AXIS mm 770 MM
  • MAX WORKING HEIGHT mm 155 MM
  • ELECTROSPINDLE POWER Hp / Kw 10.5 HP / 7.8 KW
  • MOTOR POWER @ 7000 RPM Hp APPROX 9 HP / 6 KW
  • REVOLUTION SPEED Rpm 1000 – 24000

MAX ROUTING WORKING FIELD MM

  • ROUTING IN X AXIS (STROKE) mm 3436 MM
  • ACTUAL ROUTING IN X AXIS mm 3060 MM
  • ROUTING IN Y AXIS (STROKE) @ FRONT mm 1470 MM
  • ROUTING IN Y AXIS (STROKE) @ REAR mm 1470 MM
  • ACTUAL ROUTING IN Y AXIS @ FRONT mm 1070 MM
  • ACTUAL ROUTING IN Y AXIS @ REAR mm 544 MM
  • ACTUAL HORIZONTAL ROUTING IN Y AXIS mm 544 MM
  • ACTUAL GROOVING IN X AXIS mm 3060 MM
  • ACTUAL GROOVING IN Y AXIS mm 598 MMAVAILABLE TOOL CHANGER ON THE HEAD @ THE FRONT Qty / Diam 7 ( SEVEN ) 80 MM
  • MAX DIAMETER OF TOOL mm 160 MM

WORKING TABLE SPECS

  • WORKABLE DIMENSION OF THE TABLE IN X & Y AXIS mm 3060 X 1070 MM
  • NUMBER OF PANEL SUPPORTS Qty 6 ( SIX )
  • LENGHT OF THE PANEL SUPPORTS mm 1100 MM
  • PNEUMATIC JIGS OR SUCTION CUPS Type PNEUMATIC JIGS
  • NUMBER OF HOLD DOWN DEVICES Qty 18 ( EIGHTEEN )
  • NUMBER OF SIDE STOPS Qty 2 ( TWO ) ON EACH SIDE
  • WORKING FIELDS Qty 2 ( TWO )
  • SIZE OF EACH PANEL IN EACH FIELD mm 1400 MM
  • CENTRAL STOPS Qty DOUBLE CENTRAL STOPS
  • DIGITAL DISPLAY POSITIONAL DEVICE STANDARD
  • VACUUM PUMP Qty / m3 100 M3

MACHINE FEATURES

  • VOLTAGE STABILIZER YES
  • AUXILIARY VACUUM DEVICE FOR JIGS YES
  • POWER OF THE INVERTER Kw 11 KW
  • TEMPORISED FORCED LUBRICATION STANDARD
  • TYPE OF DRIVE METHOD IN X AXIS Type RACK N PINION
  • TYPE OF DRIVE METHOD IN Y AXIS Type BALL SCREW
  • TYPE OF DRIVE METHOD IN Z AXIS Type BALL SCREW
  • SAFETY DEVICE @ THE FRONT Type PHOTO CELL BARRIER
  • CONTROL TYPE Type NC 500 ( NC1000 OPT )
  • STANDARD SOFTWARE EDITIOR
  • AIR CONDITIONER STANDARD
  • WARRANTY PERIOD Months 12 MONTHS
  • OPTIONAL EQUIPMENT TYPE
  • MACHINE FOOTPRINT mm APPROX 5000 X 3740 X
  • ROLLER ON THE NC CONTROLLED BARS OPTIONAL
  • ADDITIONAL INVERTER NONE
  • ADDITIONAL VACUUM PUMPS 250 M3
  • MAX HP OF ROUTERS 10.5 HP / 7.8 KW
  • LASER POSITIONING DEVICE OPTIONAL
  • DIFFERENT LENGHT OF MACHINE mm NONE
  • TELESERVICE OPTIONAL
  • MACHINE WEIGHT Kg APPROX 3000 KG

Details

Brand

Biesse

Model

Rover 22

Manufactured Year

2002

HP

10.5

Phase

3

Serial

13024
