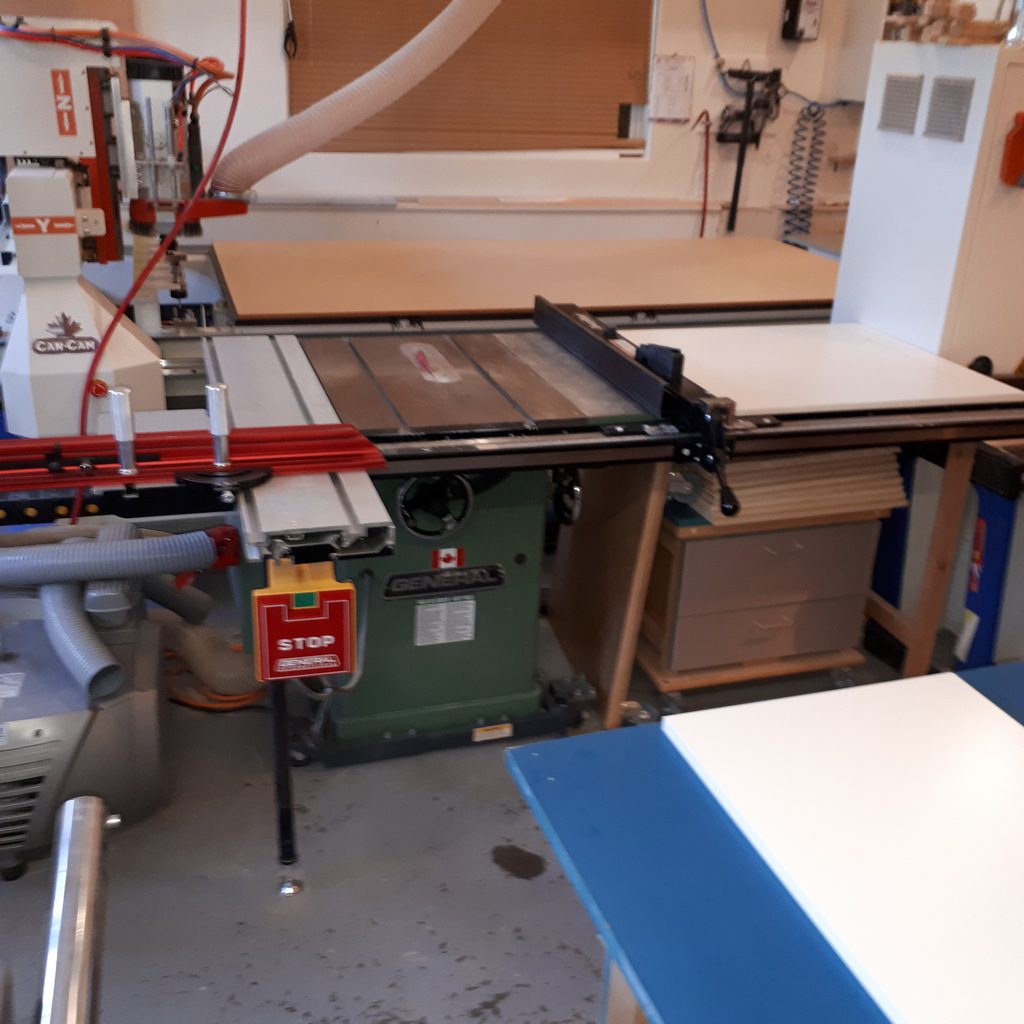

Canadian-made General 650R 10in Table Saw

SPECIFICATIONS

• BLADE /ARBOR DIAMETER: 10” (254 MM) / 5⁄8” (16 mm)
• MAX. DEPTH OF CUT AT 90° / 45°:  3 1⁄8” (79 mm)/ 2 1⁄8” (54 mm)
• ARBOR TILT RANGE: 0° À 45°
• MAX. RIP TO LEFT / RIGHT OF BLADE: 12” (305 mm) / 50” (1270 mm)
• MAXIMUM DADO WIDTH: 13⁄16” (21 MM)
• DISTANCE AHEAD OF BLADE: 12 3⁄4” (324 MM)
• TABLE SIZE (L x W x H): 28” X 36” X 34” (711 X 914 X 864 MM)
• SIZE OF T-SLOTS: 3⁄8” x 3⁄4” (10 x 19 mm)
• ARBOR SPEED: 4000 RPM

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
