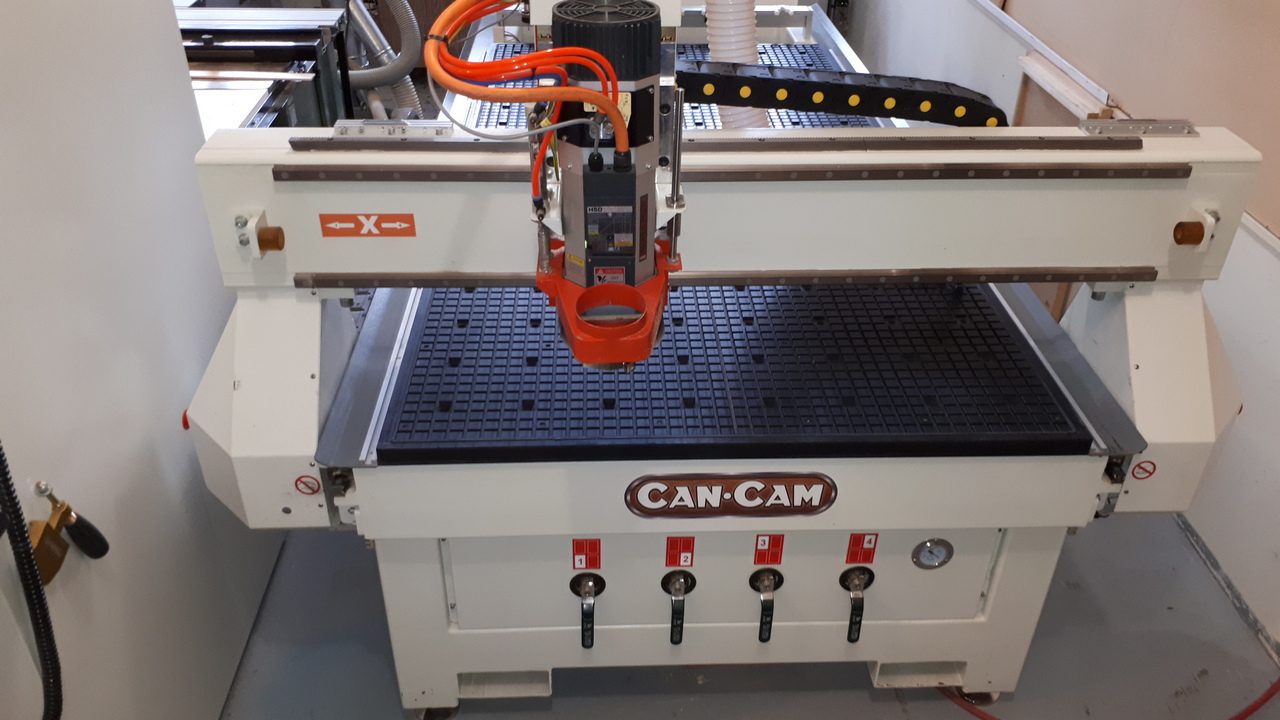

CAN CAM CNC B248-ATC Router

CAN CAM CNC B248-ATC Router

SKU: 602-4

CAD $32,500.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Specifications

Machine Features:

  • Automatic Tool Changer
  • Herion Helical Rack
  • THK Linear Guide Rails
  • Shimpo Gear Reducers

Physical Features

Machining Bed 49 in x 98 in/124.46 cm x 248.92 cm
Machine Footprint  126 x 78.54 x 62.25in / 32o x 199.5 x 158.1 cm
Electrical Cabinet Size
Table Top PVC Vacuum Table
T-Slot/Vacuum Combo
Gantry Height 8 in/12 in/18in
Weight 3968.32 lbs/1800 kg
Colour White
Table Structure Welded Steel Frame

Controller

Interface OSAI Open Controller
Type PC Based
Screen Size 19 in/48.26 cm
Touch Screen No
Operating System Windows CE To Windows 7
Inputs USB

Spindle

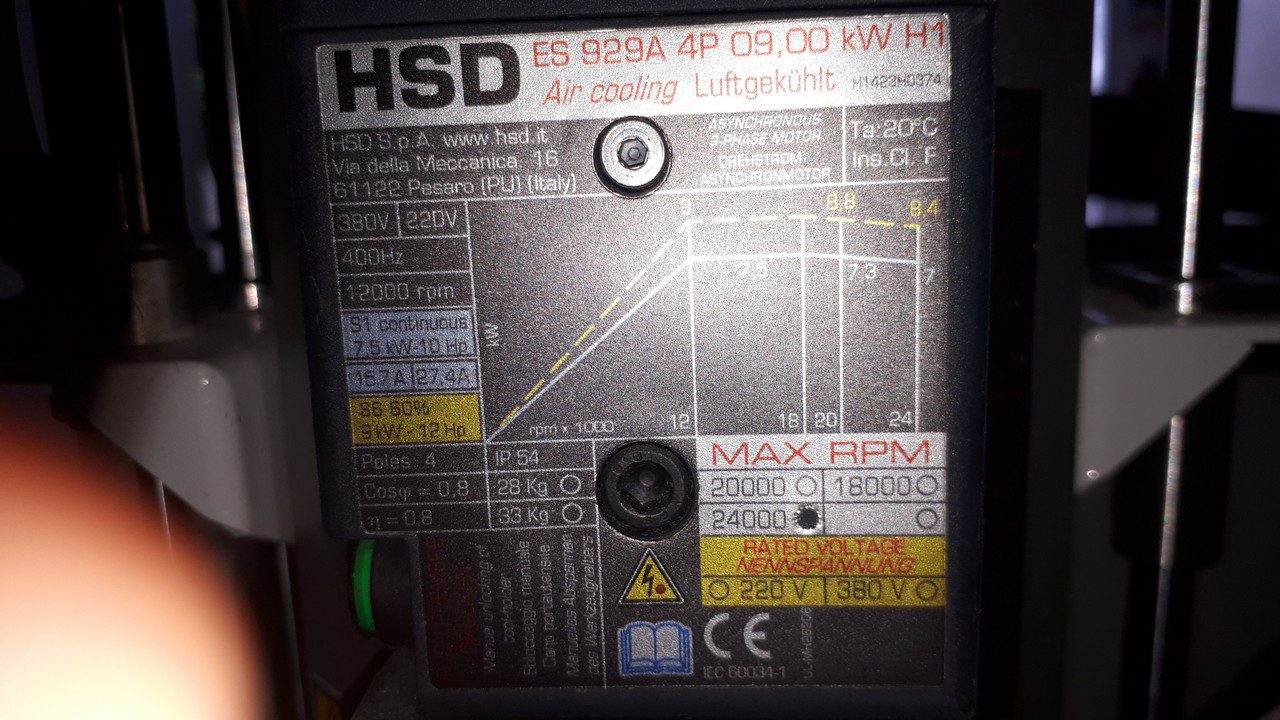

Model HSD ES929 – H6161H1145
Power 9.0 kW/12 HP
Max Speed 24000 RPM
Collet Size ER 32 ISO 30
Variable Frequency Drive Delta – Model VFD110B23A
Cooling System Electric Air Cooled

Drive System

Motor Delta
Type Servo
Power 750 W
Transmission (X & Y) – WHM Helical Rack & Pinion Drive
(Z) – RSK Ball Screw Drive – R16-5T3-FS1-420-0.05
THK Linear Guide Rails (All Axes) – HSR25R2QSSSHH
Shimpo Gear Reducers – VRSF-10C-RV
Rapid Speed 1500 IMP
Max Cutting Speed 1000 IMP

Tool Change

Automatic Yes
Tool Holder Positions 8-10

Accuracy

Positioning 0.0079 in/0.2 mm
Repositioning 0.0020 in/0.05 mm

Power

Voltage 208 V 3 Phase 60 Hz
Machine Power 12.5 kW
Vacuum Power (95CFM) 5.5 kW
Total Power 17.5 kW
Total Amperage 50 A
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.



Details

Brand

Can Cam

Voltage

208V

Phase

3 Ph

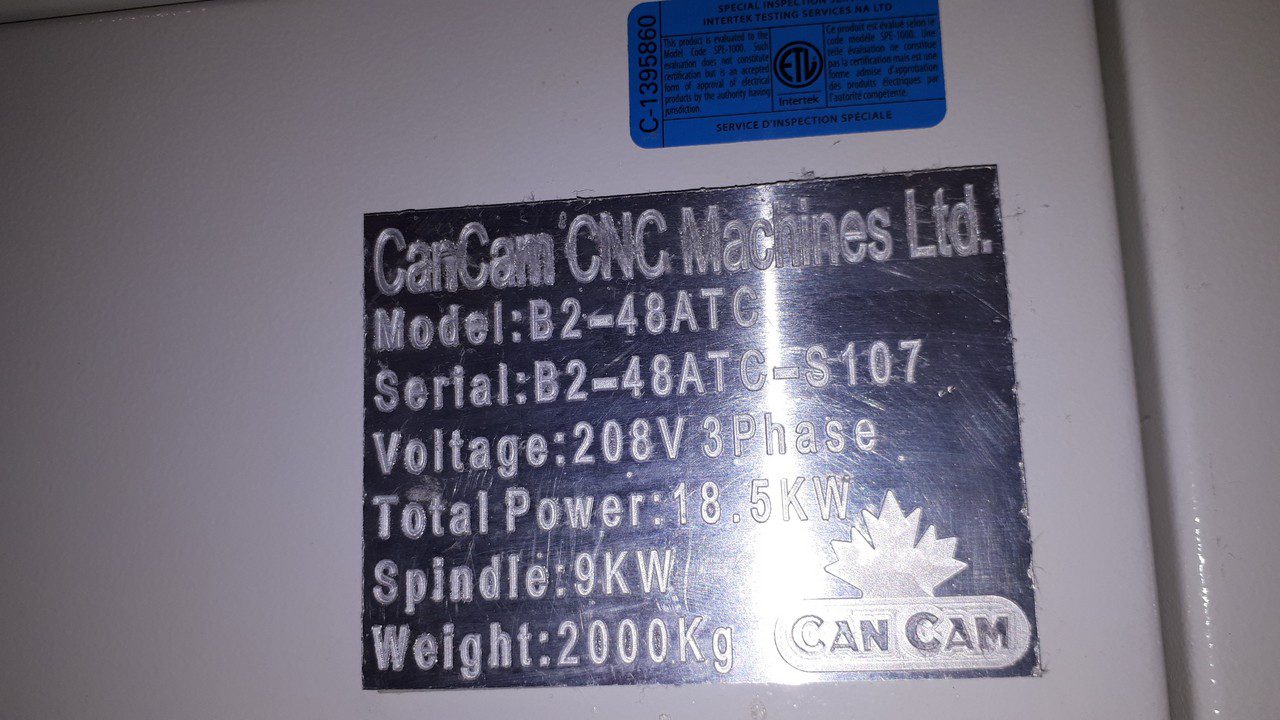

Serial

B2-48ATC-S107

Manufactured Year

2007
