SKU: 825-1

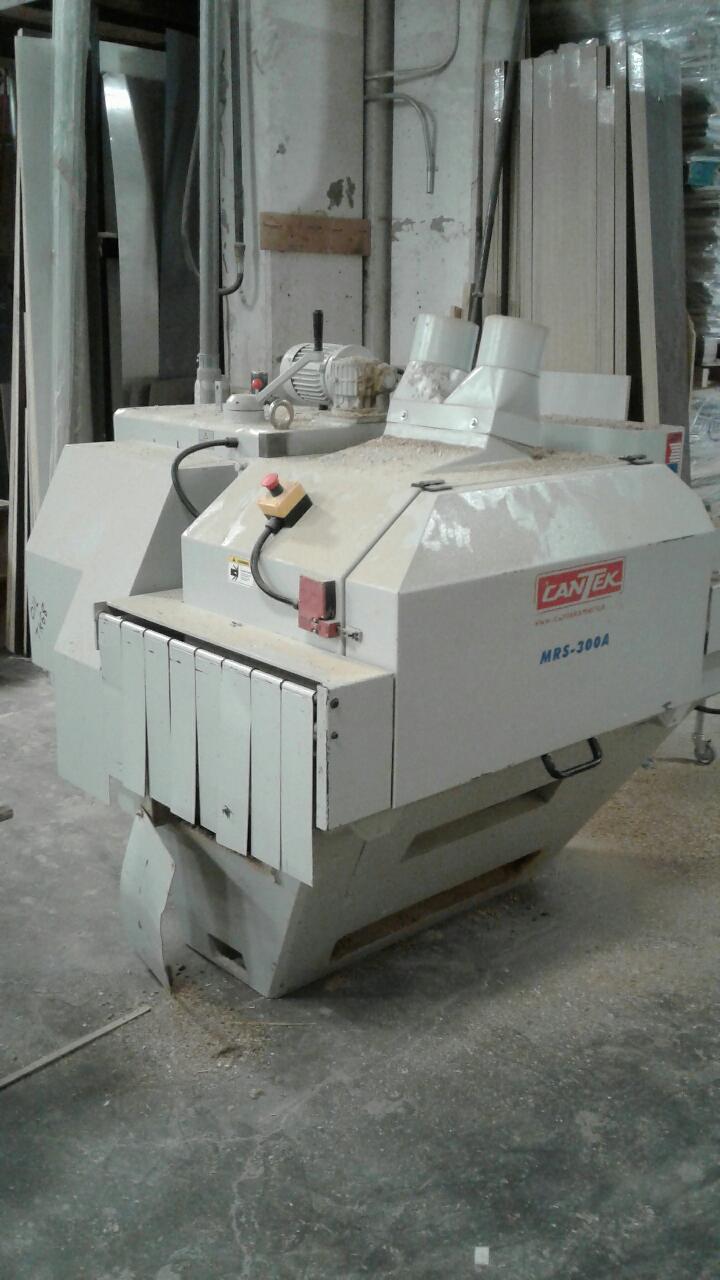

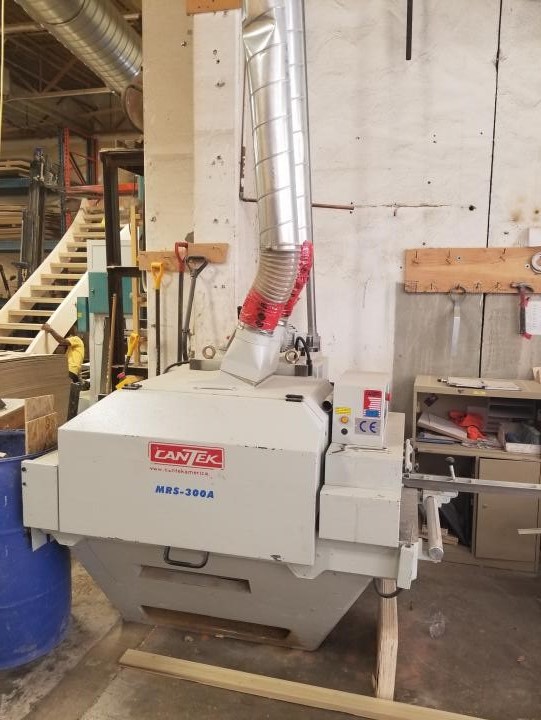

Cantek MRS-300A Ripsaw

Out of stock

/

But wait, we have similar products

Specifications

  • 480V
  • 3 Phase
  • Max Working Thickness: 14” Blade 4.33” (110mm) without short stock attachment
    3.74” (95mm) with short stock attachment
    15” Blade 4.72” (120mm) without short stock attachment
    Minimum Length 23” (585mm) without short stock attachment
    11.8” (300mm) with short stock attachment
    Maximum Cutting Width 11.8” (300mm)
  • Distance from Column to Center of Chain 14.17” (360mm)
    Saw Blade Diameter 8” to 15” (203 to 380mm)
    Saw Arbor Sleeve Diameter (Blade Bore) 70 mm w/ keyways
    Saw Arbor Diameter 50 mm
    Saw Arbor Speed 3800 RPM
    Saw Motor HP 50 HP – Voltage 460/3/60
    Powered Pressure Rollers (Rise/Fall) ½ HP motor
    Feed Speeds 25 – 100 FPM (7.5~30 m/min)Feed Motor HP 2 HP
    Dust Hood Diameter 2 @ 6”
  • Table Size 60″ x 30” (1530x760mm)
    Table Height from Floor 33.5”
    Net Weight 4510 lbs. (2050 kgs)
    Shipping Weight 5060 lbs. (2300 kgs)
    Machine Dimensions 82.68” x 59” x 56 ½” (2100 x 1500 x 1435 mm)
  • Cast Iron Frame
  • Main parts are enclosed
  • Nickel chrome steel Saw Arbor with 70 mm OD – dble. keyed quick removal sleeve.
  • 3 sets of Anti-Kickback Fingers 2 top, 1 bottom.
  • Powered Rise & Fall to the pressure rollers.
  • New style round Fence Bar support with quick shift long fence.
  • Automatic Centralized lubrication system.
  • Automatic Star-Delta Starter (slow speed start) and low voltage controls.
  • E style European guard & safety features.
  • Long fence for control of long material.
  • Automatic star-delta starter (slow soft-low amperage start) and low voltage controls.

Mfg Year: 2011

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
