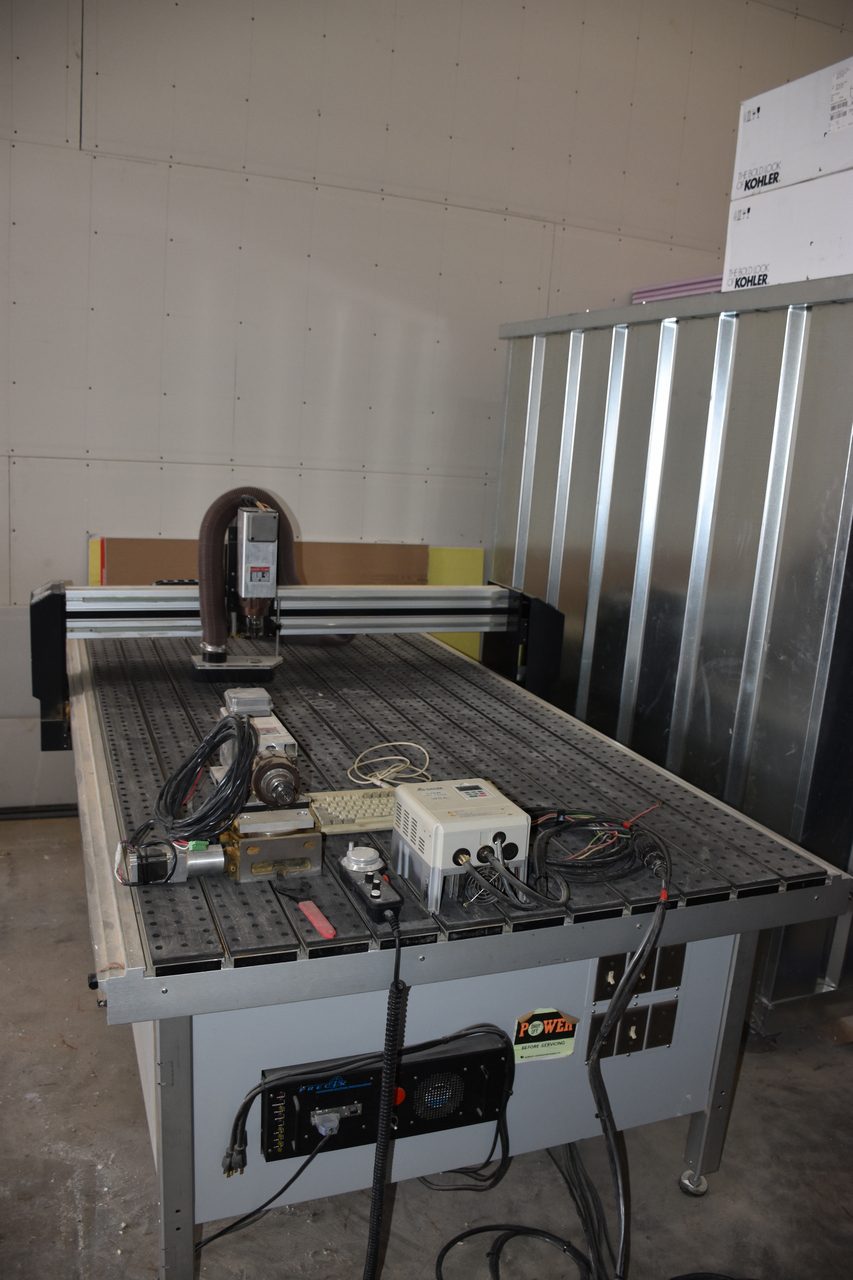

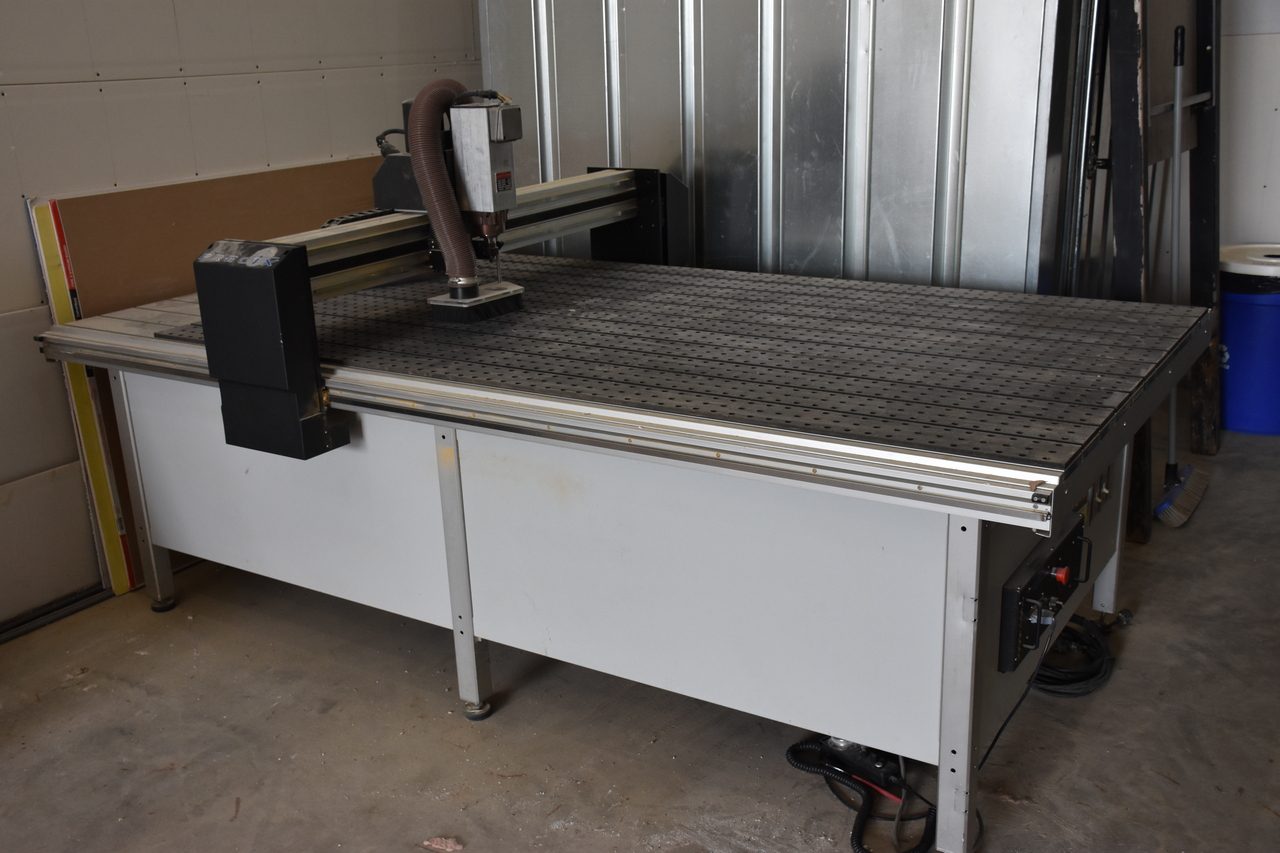

- Model: 9100 Series

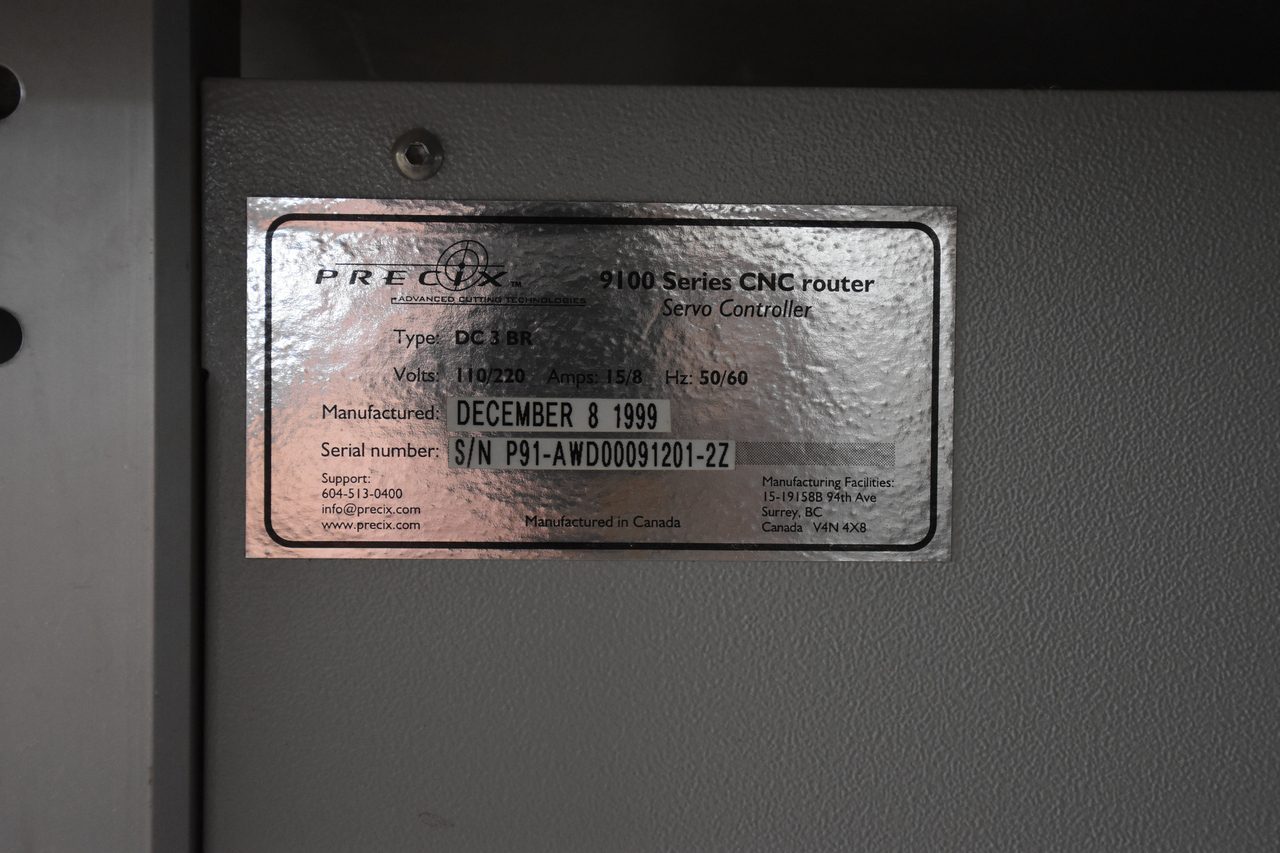

- Serial No.: P91-AWD00091201-2Z
- Year of Mfg: Dec 1999
- Shipping Weight 2000 Lbs
- Shipping Dimensions 120″x80″x44″
- Positioning Accuracy 0.001″
- Accuracy 0.002″
- Overall Dimensions (HxWxL) 63x144x74in
- Max. Z Axis Clearance 6.0″ / 12″ option
- Repeatability 0.001″
- Max. Feed Rate up to 700″/ min.
- Working Area 49″x98″
Mechanical:
- T-6061 heat treated high – strength aluminum alloy table top with stainless steel base
- Self cleaning linear bearings on all axes
- Zero-backlash rack & pinion drives on X, Y
- Ultra precision planetary gear boxes on X, Y
- Z axis ground ball screw drive
- Extremely flat reference table top withAluminum T-Slot and choice of Sintra or Phenolic grid
- 6″ deep platen
Standard Items:
- 5 hp Perske or HSD spindle motor
- Heavy duty industrial linear bearing sets
- Duty rated vacuum hold down system
- High torque/high speed servo motors
- Vacuum take-off attachment for spindle
- Emergency stop switches
- Allen keys
- Eye / ear protection
- Router bits
- 110/220 volt controller system
Electronics:
- 40 Gigabyte DNC file capacity
- Graphic User Interface
- Online help at the controller
- Multiple language support
- Onscreen plot file preview
- Dry run feature / two speed plunge
- Realtime feedrate override
- Ethernet or USB file transfer
- Spindle speed adjustment at controller
- CE compliant
- Electronic backlash elimination
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
