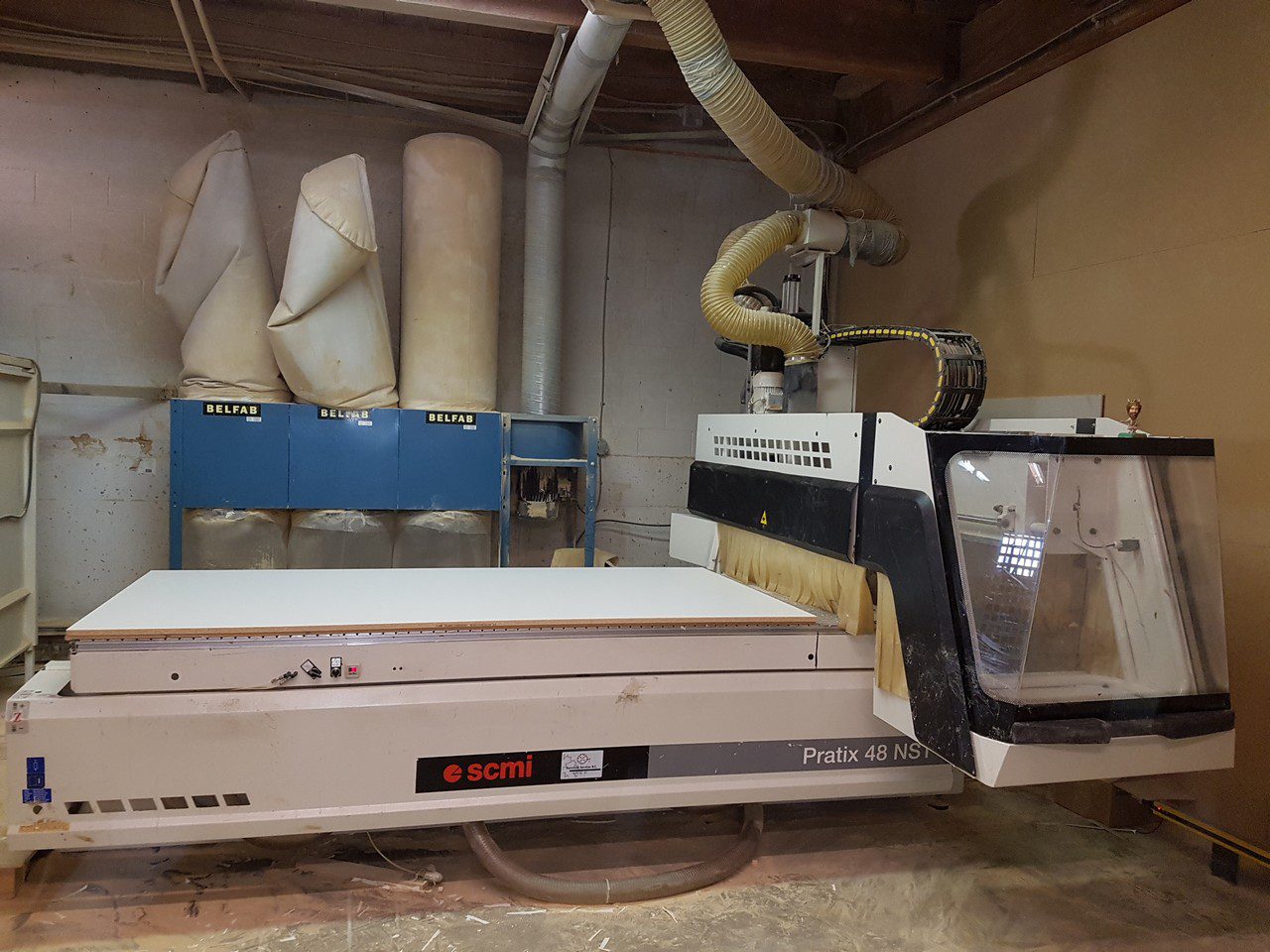

SCM PRATIX 48 NST FLAT TABLE CNC MACHINING CENTER-NESTING

$44,500.00 CAD* (approx USD: 34265) or best offer

Sold

SKU: 588-1

Condition:

Good

Location: Owner Location, Call to View

Ships to: Worldwide


Features and Specifications:

  • Year of MFG 2005
  • 600 V, 60 Cy and 3 Ph
  • Estimated Dimension: 155″ x 102″ x 96″
  • Estimated weight: 7500 Lbs
  • 4′ x 8′ Stationary aluminum table, machined with a “MATRIX” grid pattern for fixture parts.
  • Working field: “X” Axis is 106″ (2,690 mm), “Y” axis 51″ (1,295 mm), “Z” axis stroke is 13.3″ (340 mm); max. material clearance is 4.9″ (124 mm).
  • Positioning Speed: “X” & “Y” Axis is 246 FPM (75 MPM), “Z” axis is 98 FPM (30 MPM)
  • Closed loop AC Servo drive system driving precision ground ball screws; All axes ride on extra large precision profile linear guide ways.
  • Work Table: Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for “nested based machining”; pop-up pins on the table perimeter for part location.

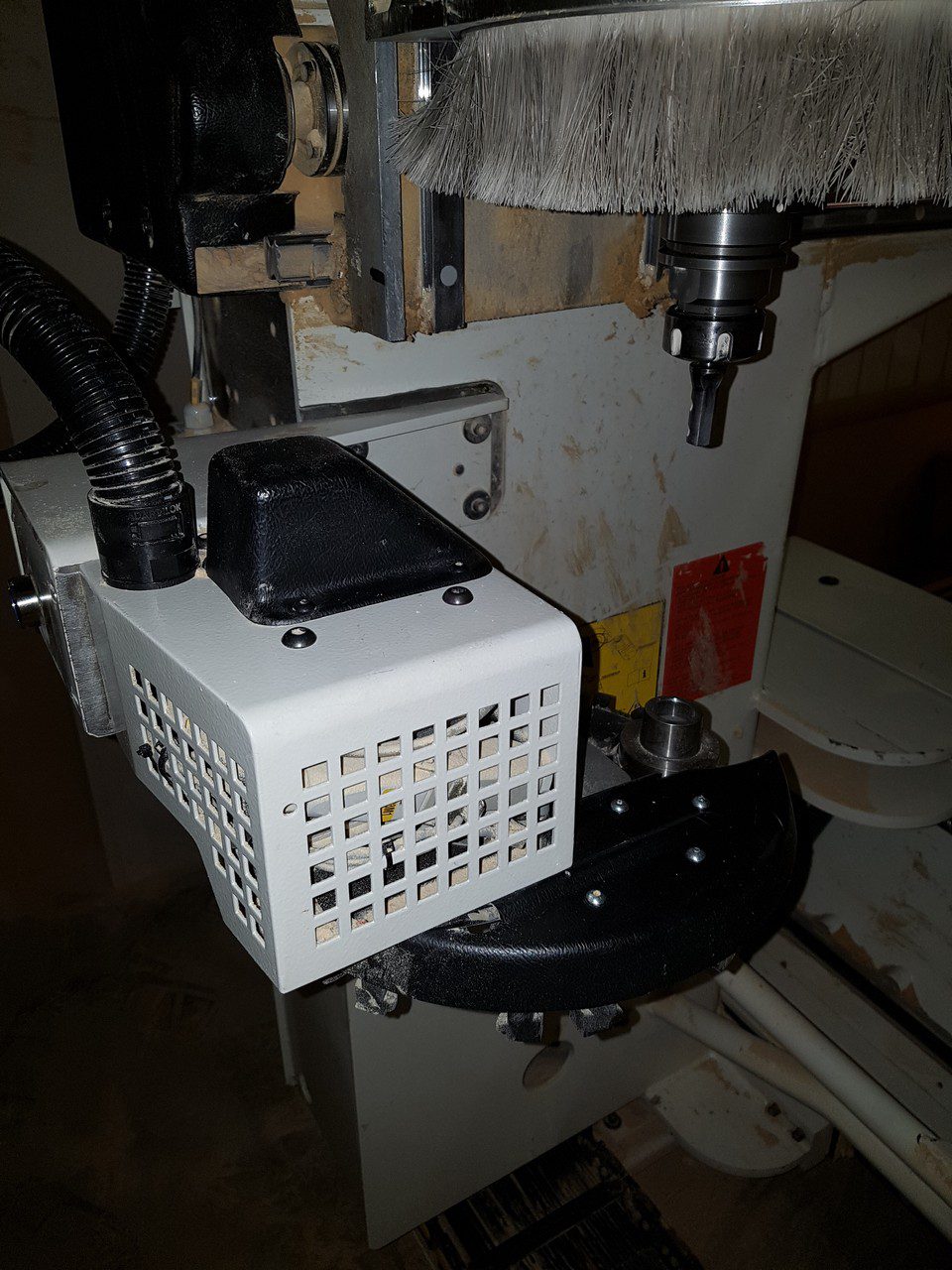

  • Boring unit: 3 HP (2.2 kW) – 4,000 RPM motor; (1) “F 12” boring unit with (12) independent vertical spindles, (7) spindles in “X” axis & (5) spindles in “Y” axis.
  • (6) Horizontal spindles, (2+2) in “X” axis & (1+1) in “Y” axis; (1) 120 mm dia. saw blade in “X” axis.
  • Machining: (1) 10 HP (7.5 kW) “Power 2000” Electro spindle with HSK F63 tool adaptor; variable spindle speeds from 1,500 – 18,000 RPM.
  • (1) 8-Position traveling ATC tool carousel.
  • Operator & Machine Control: PC Front End with SCM “XILOG Plus” + “ASPEN 2004” + Windows “XP” operating system; 15″ CRT color display; 40 GB hard drive, 128 MB RAM;
  • Industrial keyboard & mouse; CD-ROM disk drive; all housed in air cooled cabinet.

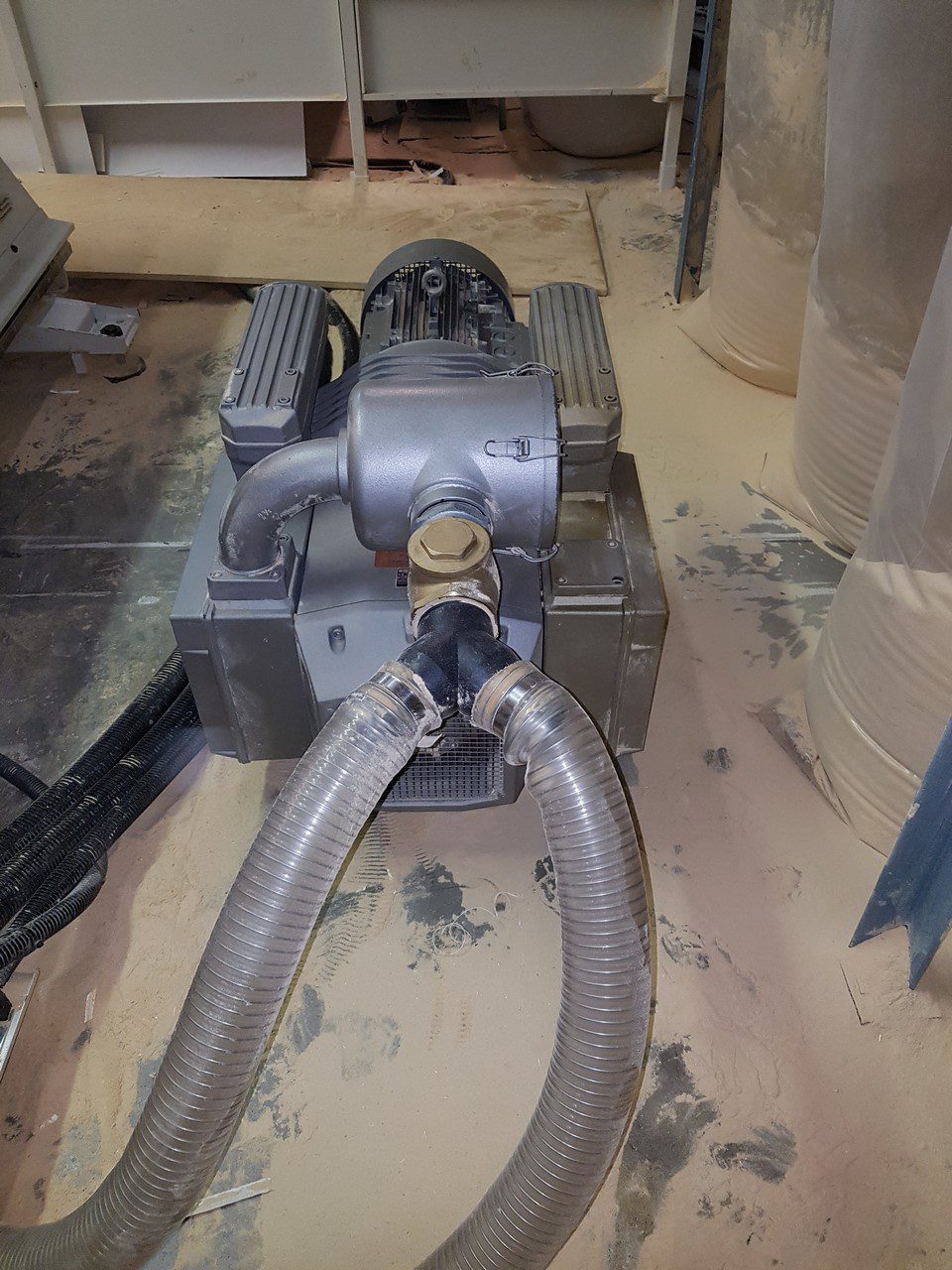

  • Complete with: (1) 10 HP Capacity Vacuum Pump;
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
%MINIFYHTMLfa14396bc9022d5fff0a2f3df8dca92b15%

Additional information

Brand

SCM

Model

PRATIX 48 NST

Voltage

600 V

Phase

3


Coast Machinery Group sells used, pre-owned machinery on a first come first served basis. All used machinery is not covered under any warranty unless otherwise stated and is provided "as-is". Descriptions and specifications are provided to the best of our knowledge (some information is communicated via 3rd-party sources). It is recommended that machinery be inspected prior to purchase to confirm the condition and specification. Additional charges such as crating, loading, export duties, taxes and delivery may apply.
