SCM S315 WS- 8′ Sliding Table Panel Saw

SCM S315 WS- 8' Sliding Table Panel Saw

SKU: 582-1

CAD $8,250.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Features and Specifications:

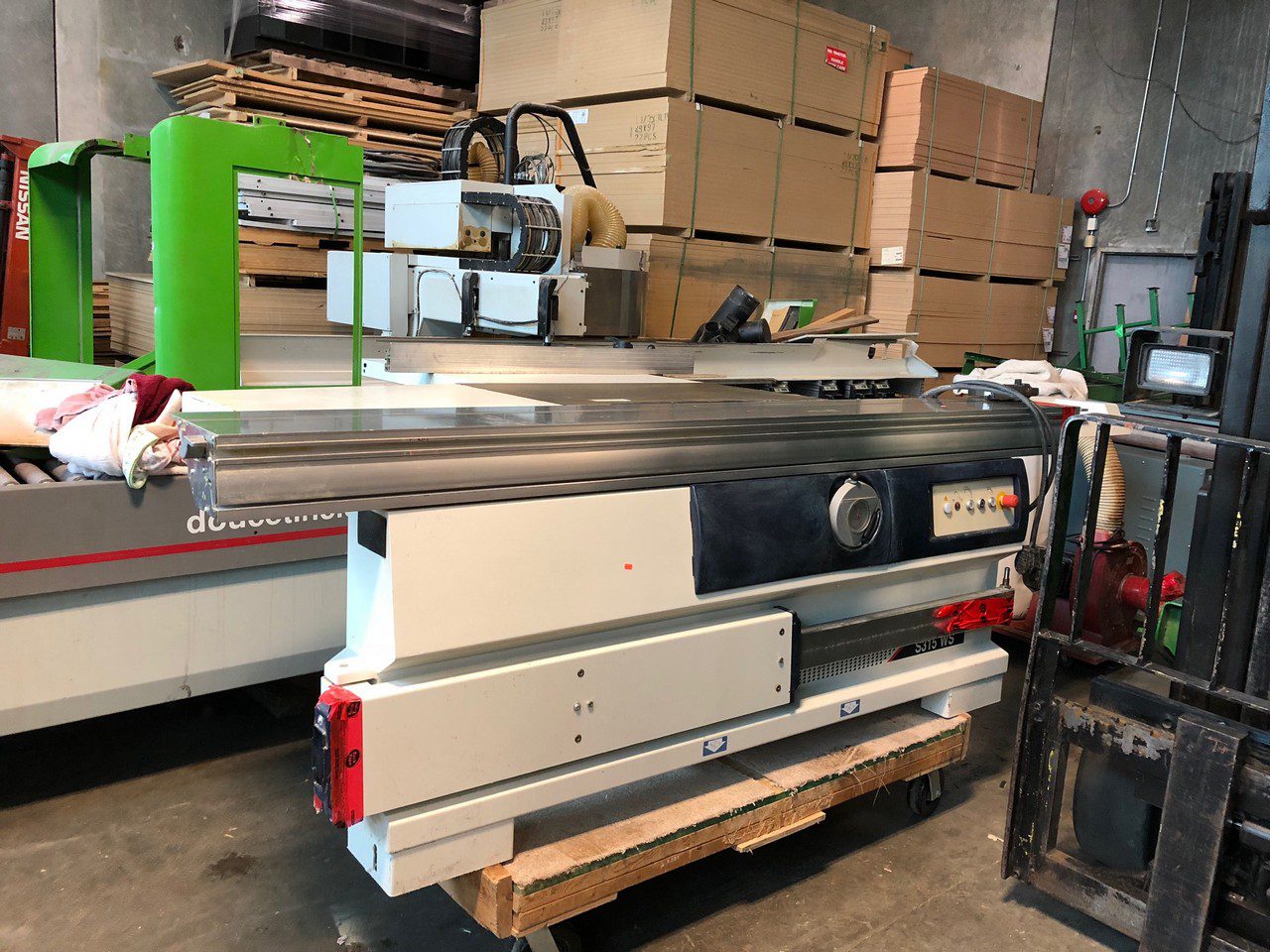

  • 8′ Panel Saw, SCM Mini Max Model S315WS
  • Single Phase
  • S/No. 29729820000
  • Screw adjustable tilting arbor
  • Fitted 300mm dia tungsten tipped saw blade with 120mm dia scribing blade
  • Sliding alloy table approx 3200 x 1800mm with extending fence and back gauge
  • Estimated Dimension  117″ X 108″ X 37″
  • Table travel 3200 mm
  • Ø blades 315 mm – 4 kW
  • Ø cut-out 120 mm – 0.5 kW
  • Standard table travel:    3200 mm
  • Max. Cutting height 90 ° / 45 ° :   101/70 mm
  • Diameter of pre-cut disk :   120 mm
  • Tilting the wheel – degrees :   90 ° – 45 °
  • Speed ​​of main wheel :   4200 rpm
  • Shaft speed :   9200 rpm
  • Cutting width using parallel. rulers  :   1270 mm
  • Main engine power :   4 kW
  • Total weight approx :   589 Kg
  • Table size :   840 х 560 mm
  • Cutting length :   3200 mm Max.
  • Diameter of the scoring saw :   80 mm Cutting
  • Cutting width for parallel stop:    1270 mm
  • Rotational speed of the disc :   4000 rpm
  • Speed ​​of the scoring disc :   8000 rpm
  • Engine power :   4 kW
  • Scoring saw unit independent:    0.75 kW
  • Aluminum carriage with steel guides
  • Anodized movable table
  • Protective guard of the saw blade
  • Eccentric clamp
  • Extension of the table at the outlet
  • Round guide Ø 45 mm for the parallel stop of increased stiffness
  • Cast iron cast body for the circular guide
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.

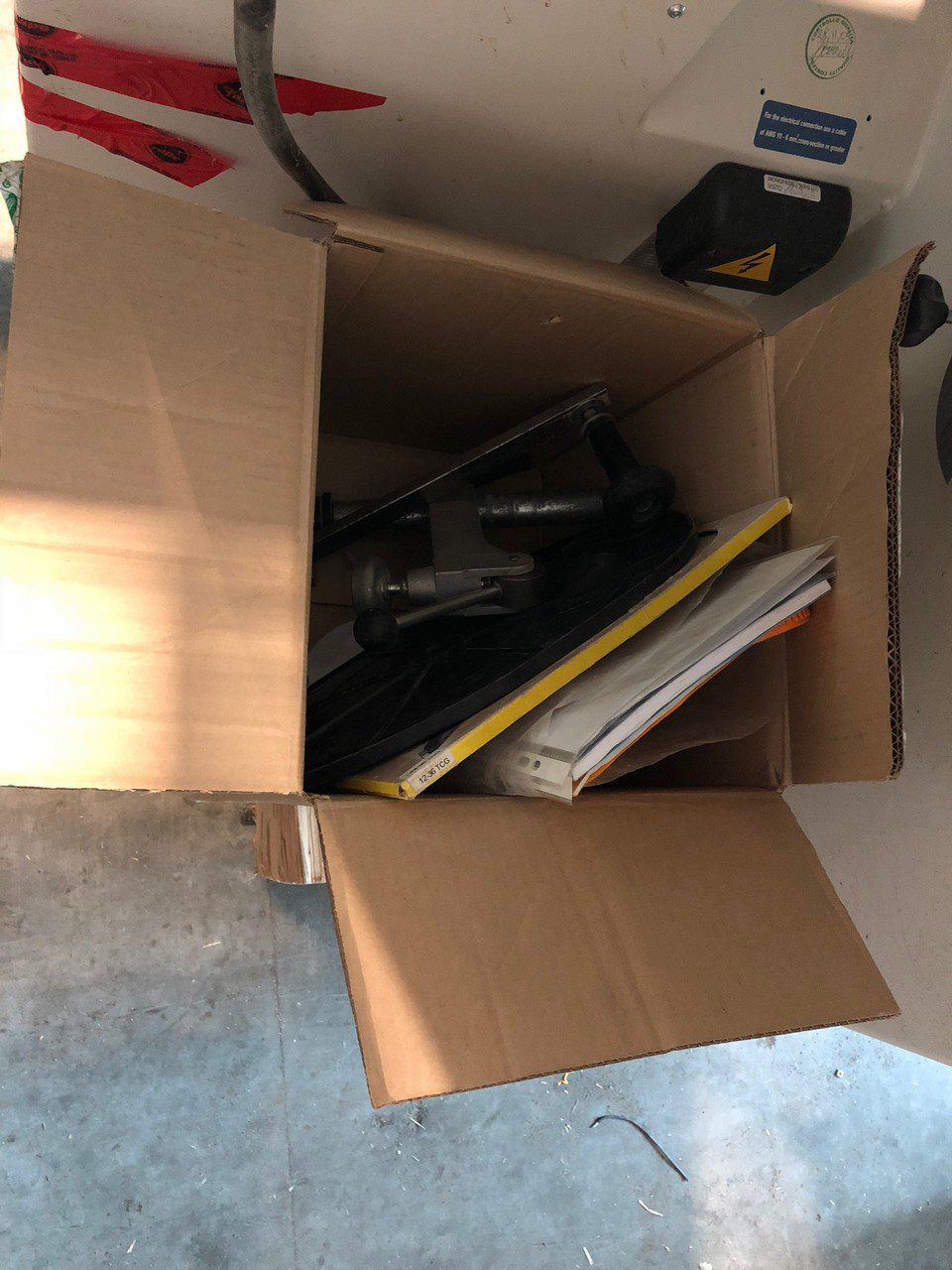

Note: Original Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.

Details

Weight589 kg
Dimensions117 × 108 × 37 in
Brand

SCM

Model

S315/WS-N

Voltage

220V

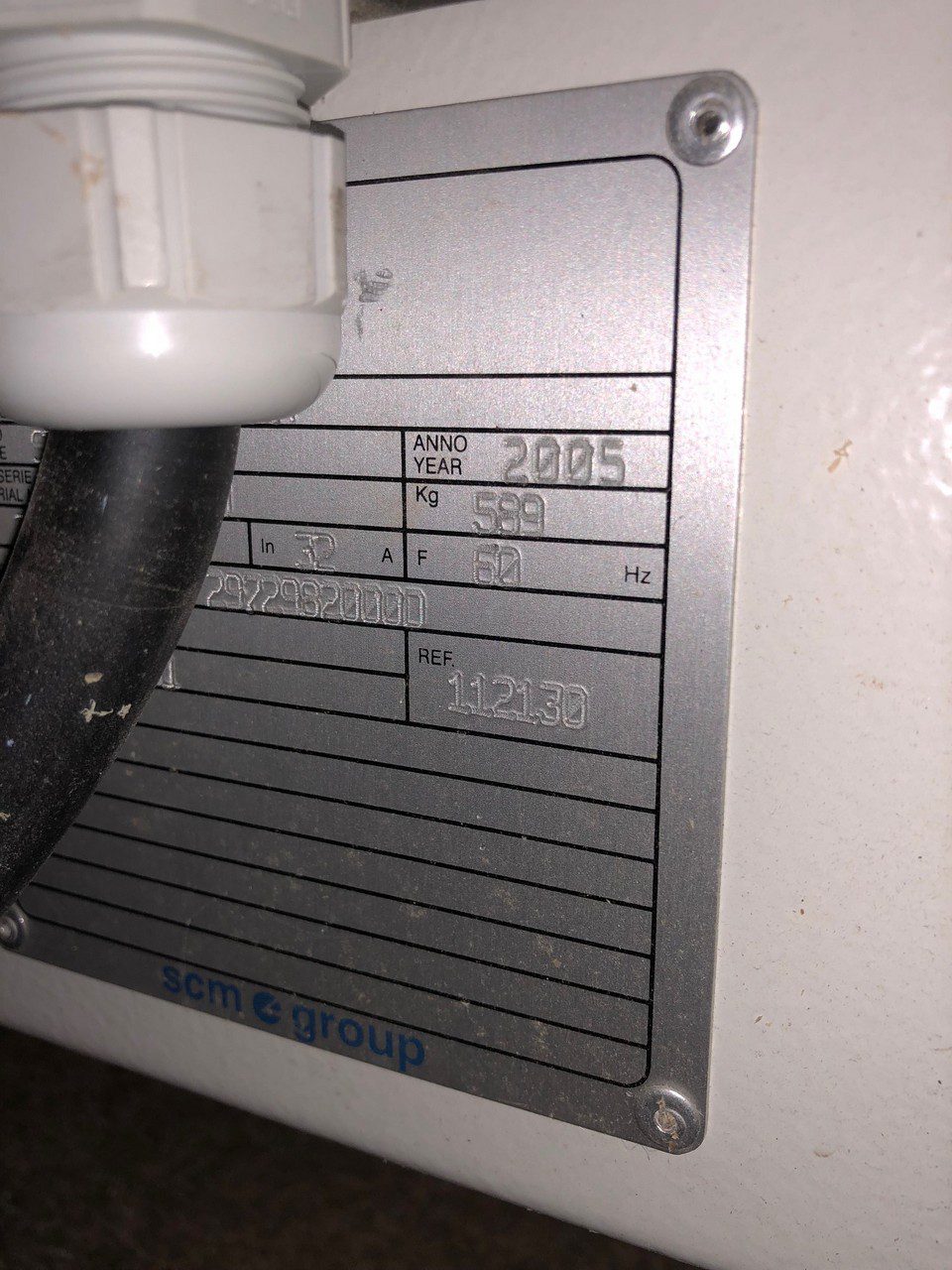

Serial

29729820000

Manufactured Year

2005

Amps

32

Phase

1
